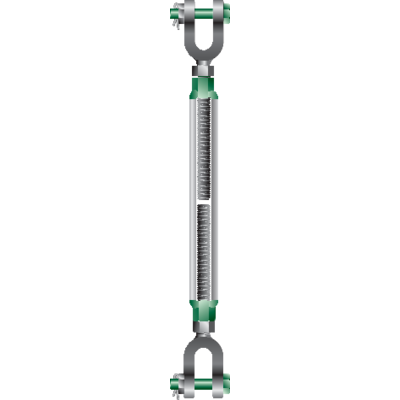

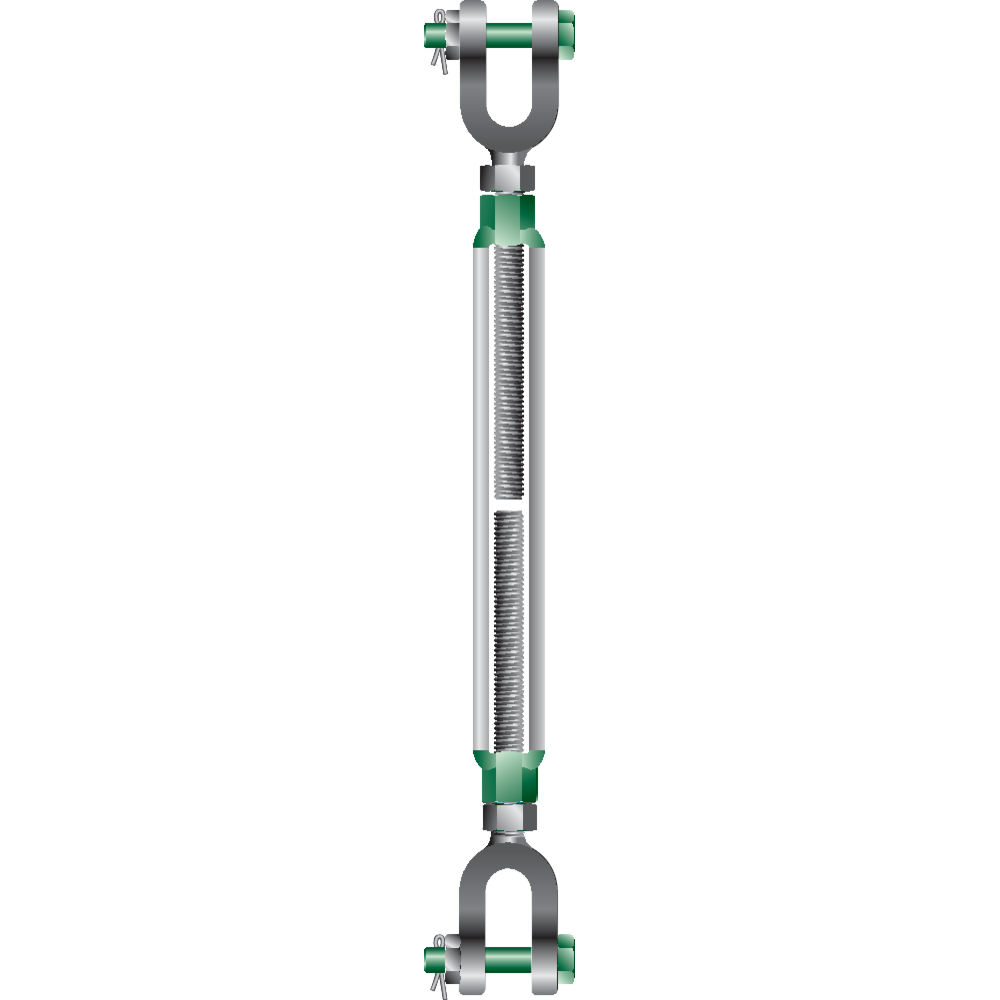

Turnbuckle jaw/jaw, with safety bolt. Turnbuckles are used for rigging or tensioning wires, ropes, rods etc. They are designed for in-line rigging, tensioning or lashing.
Standard: Generally to ASTM F1145-92 formerly U.S. Federal Specification FF-T-791b.
Certification: A works certificate, proof load test certificate and/or EC Declaration of Conformity can be supplied upon request.
- Material: Drop forged high tensile steel SAE 1035 or 1045
- Marking: CE-marked
- Temperature range: -20°C up to +200°C
- Finish: Hot dipped galvanized
- Safety factor: 5:1
