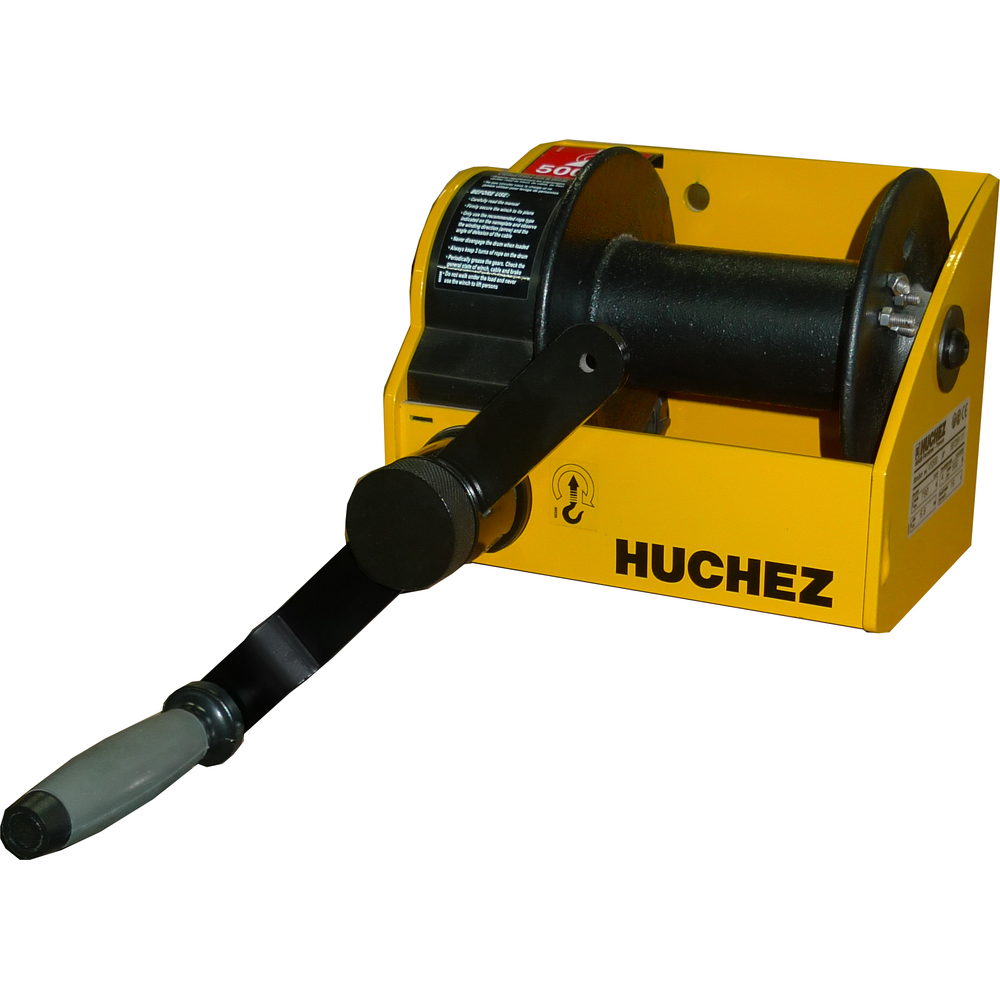

Manual - Wormgear Winch - Manibox VS

Hand wormgear winches for daily use, from 250 to 3500 kg. Availiable with painted, galvanized or stainless steel frame.

Applications:

  • Lifting or pulling/hauling operation
  • Wall-mounted or flat
  • Industry
  • Shows, sceneries
  • Water treatment, water dams
  • Sports rooms
  • Hanging chandeliers

Technical properties:

  • Compact and rugged construction with steel frame.
  • Machined parts.
  • Steel or cast iron drum depending on models.
  • Painted, galvanised or stainless steel frames available. -

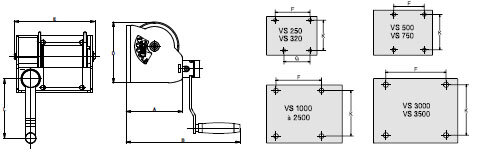

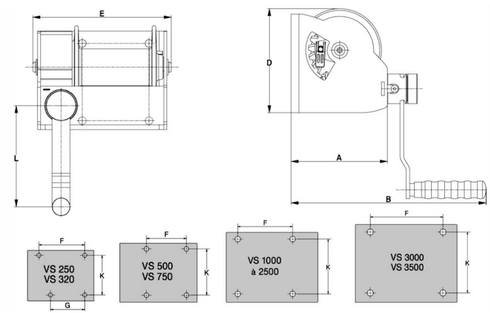

  • Flat mounted or wall mounted. 4 fixation points.
  • Fully protected gear system.
  • Removable crank positioned on the left hand side for VS 250/320/500/750/3000/3500 and on the right hand side for VS 1000/1450/1500/2000/2500.
  • Free spooling drum (except VS 250/320), only when not in load.
  • Composite material automatic brake.
  • Failsafe system for correct rope winding direction (patented).

Options: Wire rope and hook.

  • Marking: According to standard, CE-marked
  • Temperature range: -10°C to +50°C
  • Finish: Painted, galvanized or stainless steel frames.
  • Standard: EN 13157
