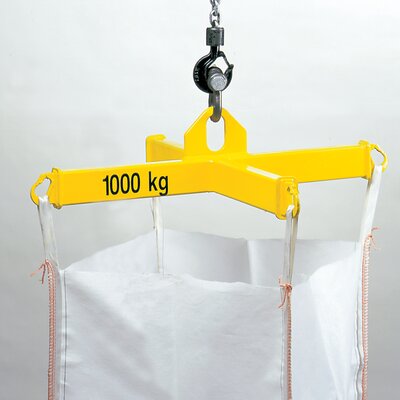

General: This four-point spreader beam in a fixed frame construction with weld-on hooks and safety latch is designed for lifting and transporting of Big-Bags.


  • Marking: WLL and CE marking.
  • Finish: Yellow painted.
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Type Z
mm
B
mm
C
mm
D
mm
Weight
kg
CAD
4025092556293 1 TTB10 1090 750-800 210 60 110 27
4025092556316 1 TTB10 1320 900-970 210 60 110 33
4025092556330 2 TTB20 1090 750-800 240 75 135 42
4025092556354 2 TTB20 1320 900-970 240 75 135 44
