General:

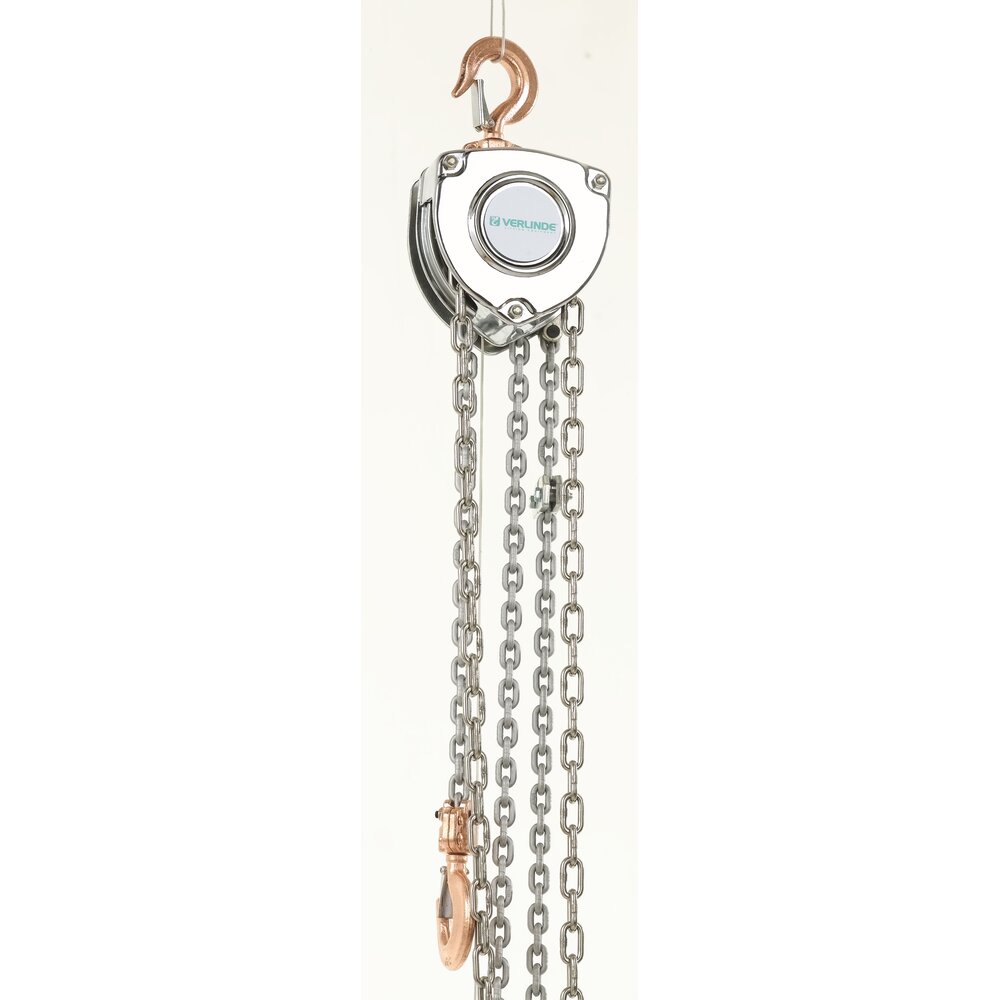

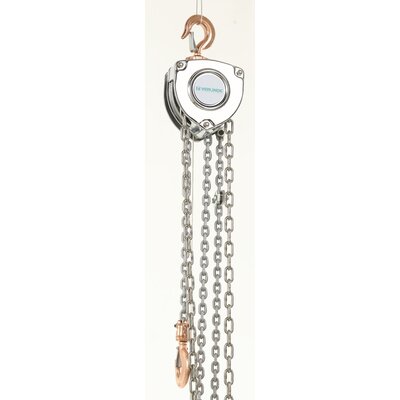

Sparkproof hand chain block for loads from 500 up to 20,000 kg.
A compact, high-performance chain block with rugged good looks, tested according to official standards.
Technical characteristics:
Specification identical to those for the standard version of the VHR except for the following features :
- ATEX Marking : Ex II 2GD c IIC T4 T+135 °C.
- Suitable for Zones 1&2 and 21 and 22 hazardous areas.
- 3 meters standard lift. Hand chain is 0.5 meters less than lift chain.
- Overload limiter is standard equipment.
- Stainless steel 316L hand chain.
- Bronze coated hooks.
- High-resistance RAL 9006 aluminum-type powder coating, 70 μ thick.
- ISO hooks with safety latch.
- Delivered with CE certificate, and hook and chain certificate.
Optional:
A wide range of options is available for this hand chain block for example:
- VHR with stainless steel load chain.
- Chain bag.
- VHR Ex-ATEX HPN with normal headroom.

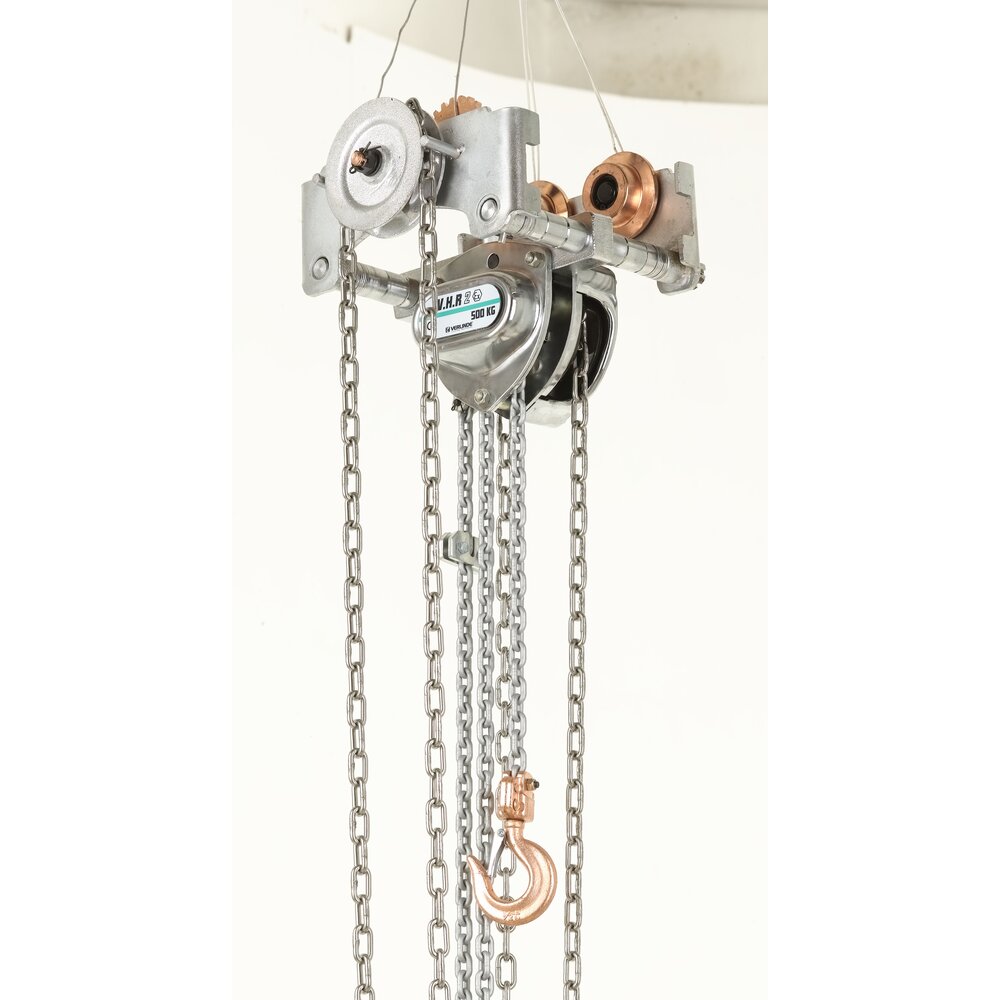

- VHR Ex-ATEX HPR with short headroom trolley.
