Certification: at no extra charge this product can be supplied with a works certificate, and/or Ec Declaration of conformity
  • Material: : alloy steel, grade 10, quenched and tempered
  • Finish: : painted blue
  • Safety factor: : MBl equals 4 x Wll
  • Grade: 10
Select a row from the table below, then click the add to quote button

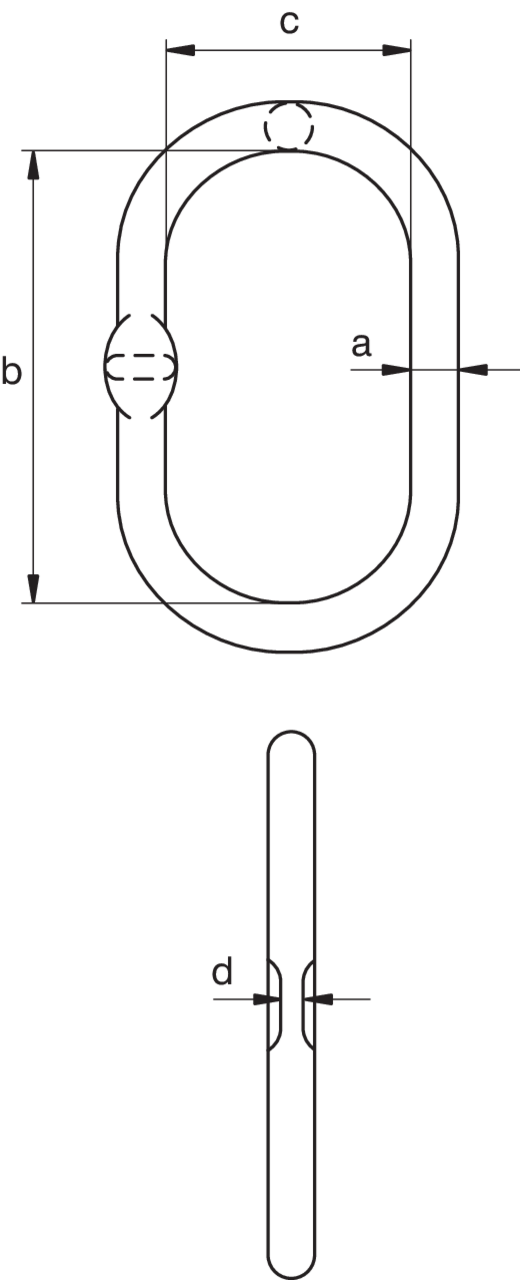

Diameter
mm
WLL
ton
thickness d
mm
length inside b
mm
width inside c
mm
For chain Ø 1-leg
mm
For chain Ø 2 legs
mm ß ≤ 45°
For chain Ø 2 legs
mmß ≤ 60°
Ø a
mm
Weight
kg
CAD
13 2 7 100 60 6 6 6 13 0,33
16 3,2 7 120 70 8 - 8 16 0,56
18 5,4 9 135 75 10 8 10 18 0,8
22 8,2 11 170 90 13 10 13 22 1,47
25 11,2 13 190 105 16 13 16 25 2,34
30 16 17 235 125 18-20 16 18-20 30 3,82

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
