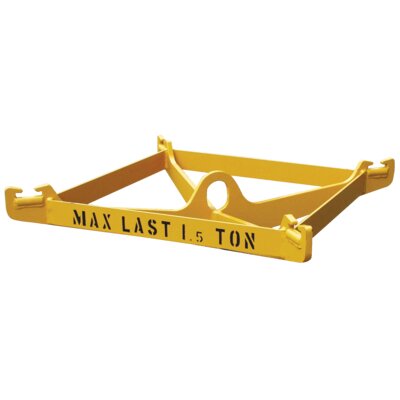

Low profile lifting beam for handling big bags with four lifting eyes. Fits most bags with the measurements of 75x75 cm to 105x105 cm in the bottom.
Design: The attachment points of the bag´s liftingeyes are leveled with the lifting point of the beam - see drawing. The attachment points are extra thick and round to protect the lifting eyes of the big bag and are also designed to prevent the bag from sliding.
Proof: Batch proof 2 x WLL.
- Material: Plate of high-strength structural steel.
- Marking: WLL and CE marking.
- Finish: Yellow painted.
- Note: Special design lifting beams with negative lifting height for other dimensions of big bags and loads are also manufactured. We also manufacture lifting beams/spreader for simultaneous handling.
