General: Tool for mounting of wire ropes.
Design: Closed with one thimble.

Also available in special editions in larger sizes and stainless material.
  • Material: Galvanized steelwire 1960N/mm²

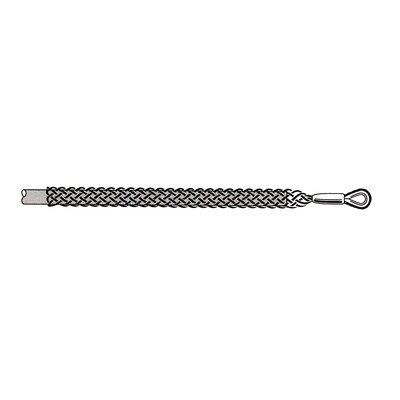

vlieterkous_afb
Currently this product cannot be added to an online quote. Please contact us directly for enquires.
Type
For wirerope Ø
Max. pullingforce
Thimble Ø
Length (*)
mm
kN
mm
mm
GL106
6-8
3.3
13
1000
G108
8-10
4.6
14
1000
GL110
8-15
6.2
18
1250
GL115
15-20
12.8
18
1250
GL120
20-30
16
18
1250
GL130
30-40
19.2
20
1250
GL140
40-50
22.4
20
1250
GL150
50-60
37.4
24
1250
GL160
60-70
49.9
28
1250
GL170
70-80
49.9
28
1250
GL180
80-90
56.2
28
1250
GL190
90-100
62.4
28
1250
GL1100
100-115
62.4
28
1250
GL1115
115-130
74.8
45
1500
GL1130
130-150
74.8
45
1500
GL1150
150-180
87.3
45
1500
GL1180
180-210
99.8
60
2000
GL1210
210-240
99.8
60
2000
(*) other lengths available
(*) other lengths available
