Appropriate for an indoor or outdoor use, the beam of the PMT is built on an I beam profile. Its light weight gives it great flexibility for rotations of 270°. The structure of this jib crane is suitable for the optional installation of a hoist motor direction.

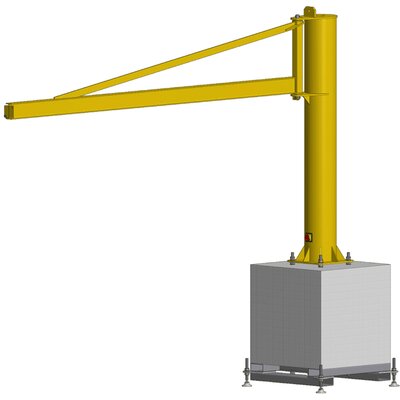

This jib crane is mounted on a movable concrete block provided. Displacement can be done by traveling crane (transport ring) or by forklift.
A full range of accessories is available.

Options
•Hoist power supply cable.
•Lockable main switch.
•Rotation slowing device.
•Rotation stops to weld onto the assembly, or adjustable.
•Single- or multipositions rotation lock
•Outdoor use.
•Hot dip galvanizing (contact us).
•Electric or manual hoist.

Select a row from the table below, then click the add to quote button
Cap.
kg
Span
m 2,0
Span
m 2,5
Span
m 3,0
Span
m 3,5
Span
m 4,0
Span
m 4,5
Span
m 5,0
Span
m 5,5
Span
m 6,0
CAD
150
250
500

Download CAD
