- General: Bow shackles with square sunken hole screw pin.


- Standard : EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271, Grade A.

- Certification : At no extra charges this product can be supplied with a works certificate, 3.1 material certificate, manufacturer test certificate and/or EC declaration of Conformity.

  • Material: Bow and pin high tensile steel, Grade 6, quenched and tempered.
  • Finish: Hot dipped galvanized
  • Note: Key for (un)screwing the pin sold separately.
  • Safety factor: 6:1
  • Grade: 6

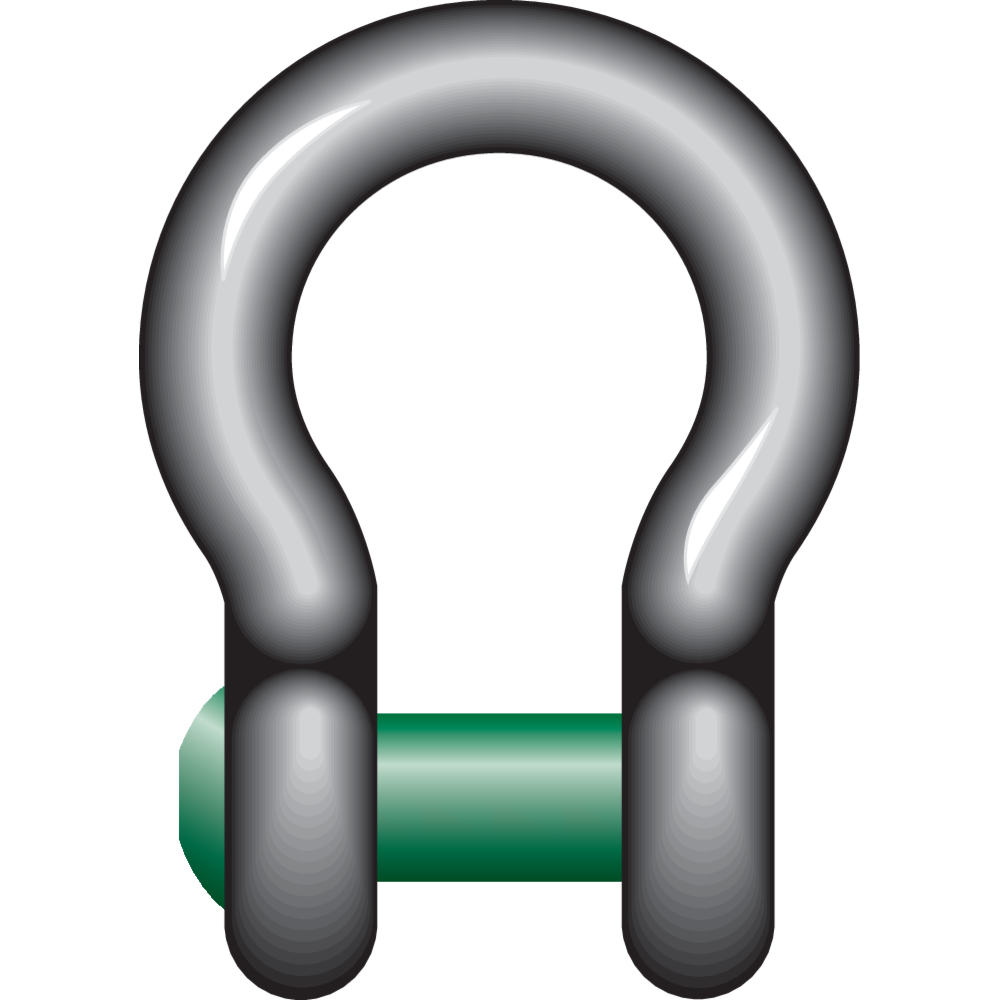

Product Image 1
Product Image 2

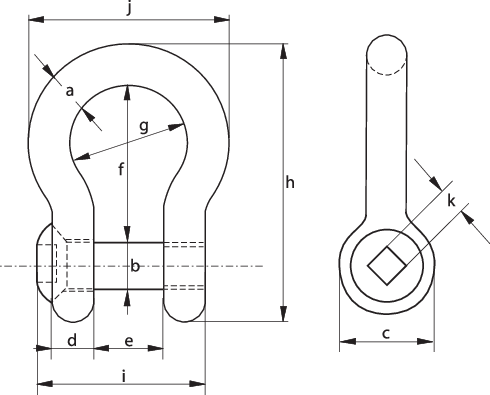

Select a row from the table below, then click the add to quote button
WLL
ton
length h
mm
width bow g
mm
length bolt I
mm
width j
mm
size hole k
mm
Diameter bow a Diameter pin b Diameter eye c D
mm
E
mm
length inside f Weight
kg
CAD
2 89 32 51 58 11 13,5 16 34 13 22 51 0,31
3,25 110 43 63 75 11 16 19 40 16 27 64 0,56
4,75 129 51 74 89 11 19 22 46 19 31 76 0,98
6,5 144 58 85 102 13 22 25 52 22 36 83 1,46
8,5 164 68 99 118 13 25 28 59 25 43 95 2,18
9,5 185 75 110 131 17 28 32 66 28 47 108 3,06
12 201 83 122 147 17 32 35 72 32 51 115 4,24
13,5 227 92 135 162 17 35 38 80 35 57 133 5,59
17 249 99 145 175 17 38 42 88 38 60 146 7,37
