General:
- Certificates S355J2G3, EN 10204 3.1 supplied as standard
- T≥ 75% of inside width of shackle.
- H≤ 106% of diameter of pin.

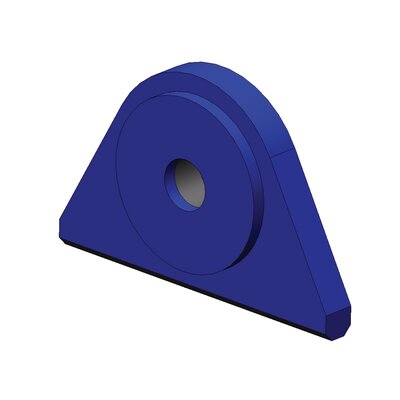

Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Diameter
mm

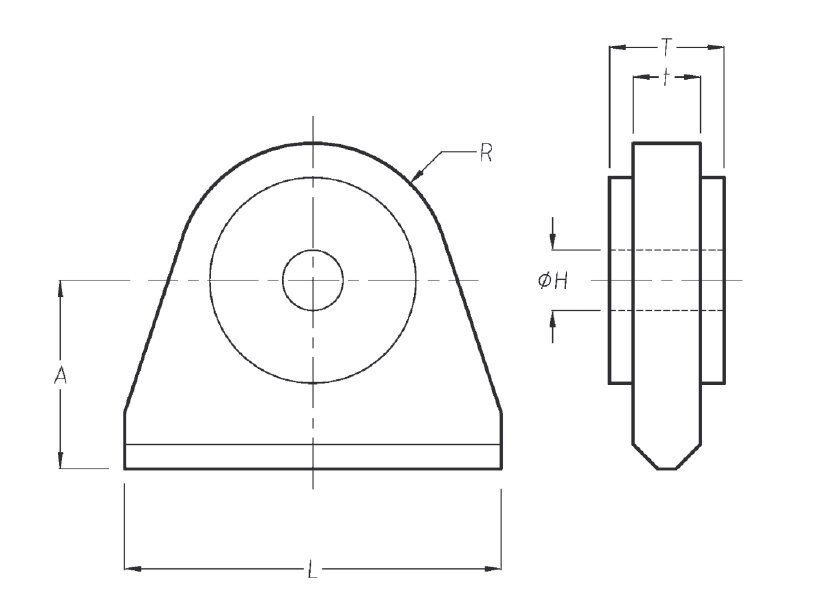

Type No. Shackle size L
mm
A
mm
Ø H
mm
R
mm
t
mm
T
mm
Weight
kg
CAD
11.4453001000S 1 9 - 10 S 3/8 76 32 11,5 26 14 14 0,3
11.4453001500S 1,5 9 - 10 S 7/16 90 32 13,5 32 15 15 0,5
11.4453002000S 2 12 - 13 S 1/2 100 38 17 35 18 18 0,7
11.4453003250S 3,25 19 S 5/8 115 45 20 38 22 22 1,5
11.4453004750S 4,75 19 S 3/4 140 51 23 45 25 25 2
11.4453006500S 6,5 25 - 26 S 7/8 150 57 26 51 30 30 3
11.4453008500S 8,5 25 - 26 S 1 180 64 29,5 64 35 35 5
11.4453009500S 9,5 25 - 26 S 1 1/8 203 76 33,5 76 40 40 7,5
11.4453012000S 12 32 S 1 1/4 216 83 37 83 45 45 10
11.4453013500S 13,5 32 S 1 3/8 228 89 40 89 30 50 10
11.4453017000S 17 35 S 1 1/2 280 140 44 102 40 50 18
11.4453025000S 25 41 - 42 S 1 3/4 305 140 53 121 40 60 23
11.4453035000S 35 51 S 2 356 153 60 133 50 70 35
11.4453055000S 55 63 - 64 S 2 1/2 482 165 74 152 50 90 55
11.4453085000S 85 76 - 77 S 3 559 203 87 178 60 110 90
11.4453120000S 120 95 - 96 S 3 1/2 711 254 100 229 70 120 170
11.4453150000S 150 102 S 4 813 280 114 254 80 150 250
