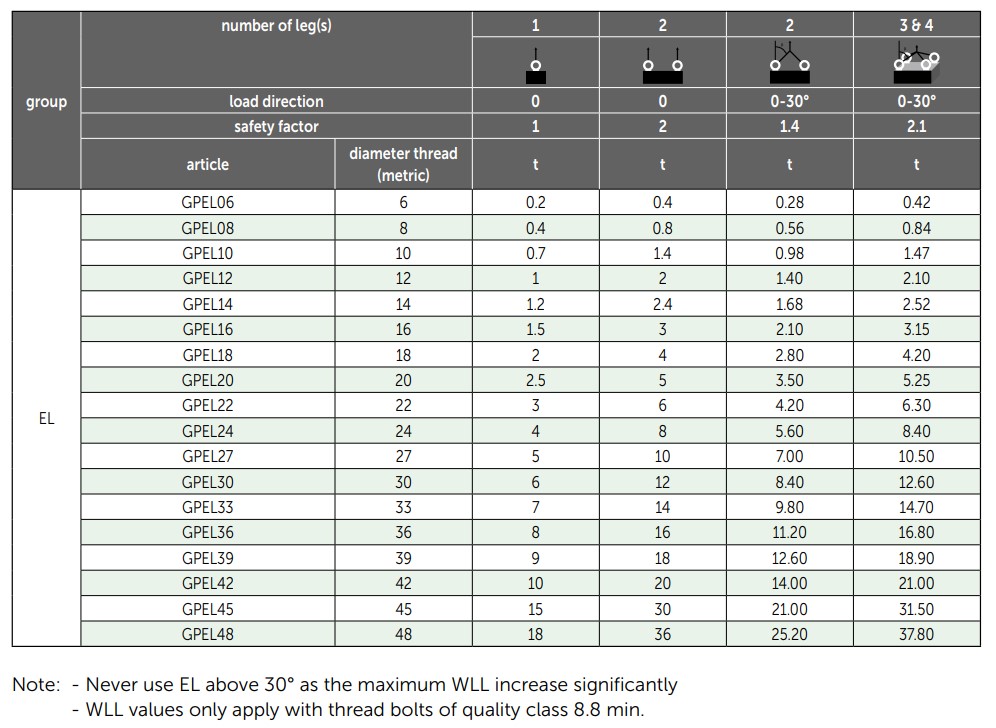

The Green Pin® Eye Nut is a grade 8 eye nut. These eye nuts have a flat on the eye, which enables the assembly with an omega link or a thimble. They have ISO metric threads as standard, however UNC threads are also available. The Green Pin® Eye Nut is available in a range with a working load limit from 0.2 t. up to 18 t.
Certification on request: 2.1, 2.2, 3.1, MTCa, MPIb
- Material: Alloy steel, quenched and tempered
- Marking: CE-marked
- Temperature range: -40°C up to +200°C
- Finish: Painted white
- Safety factor: 5:1
- Grade: 8
