KWB

General: Star Alloy Plus+ chain for lifting or lashing (other safety factor) at high working temperatures.

Features:

  • Working temperature max. 200ºC. No WLL reduction
  • Working temperature 200-300ºC. WLL reduction 10%.
  • Working temperature 300-380ºC. WLL reduction 25%.
  • Grade Marking: "8+" on link every 900mm.

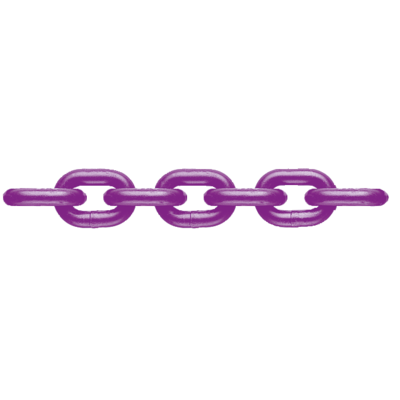

  • Surface: Violet varnished
  • Material: Alloy steel
  • Marking: According to standard, grade marking "8+"
  • Temperature range: -40°C up to 200°C , 200 up to 380°C with reduction of WLL
  • Standard: EN 818-2
    higher capacity
  • Warning: Not to be heat treated.
  • Safety factor: 4:1 for lifting.
  • Grade: 10
kwb_chain10_bright_225mm
Select a row from the table below, then click the add to quote button

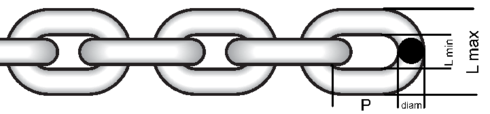

Part Code Code Diameter
mm
WLL
ton
Min. breaking force
kN
L min.
mm
L max
mm
Pitch P
mm
Weight
kg/m
CAD
11.6564962 SAP/S-6 6 1,4 56,5 9 22 18 0,96
11.6569548 SAP/S-7 7 1,9 77 10 25 21 1,2
11.6564963 SAP/S-8 8 2,5 101 11 29 24 1,57
11.6564964 SAP/S-10 10 4 157 14 36 30 2,46
11.6564965 SAP/S-13 13 6,7 265 18 47 39 4,18
11.6564966 SAP/S-16 16 10 402 22 58 48 6,28
11.6569552 SAP/S-19 19 14 567 27 69 57 8,9
11.6569553 SAP/S-22 22 19 760 30 79 66 11,88
11.6514167 SAP/S-26 26 26,5 1 060 35 94 78 16,18
