Safe, effective and economical means of transporting feeding and control cables and hoses for:
- uninterrupted electrical feeding and control of all movable apparatus such as cranes, hoists and many other apparatus for internal transport, machines or tools.
- uninterrupted supply of gasses and/or liquids to movable machines or tools e.g. welding and cutting machines, pressure air and hydraulic systems, washing and sprinkler installations. AKAPP Festoon systems are used in many applications world-wide, indoors and outdoors, under the most divergent environmental conditions.
-Longer life cycle of your cables and hoses
-Easy and fast mounting
-Practically no maintenance
-Easy to extend
-Seamless profile connections

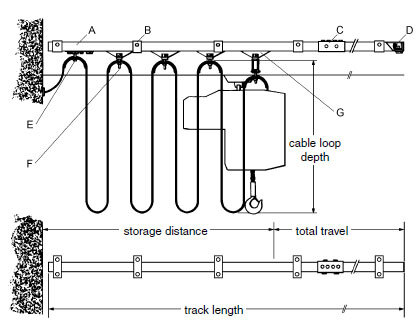

An AKAPP festoon installation contains the following components:
A. track (C-profile)
B. support bracket
C. splice joint
D. end stop
E. end clamp
F. cable trolley
G. towing trolley, or
H. mobile pendant
AKAPP Festoon systems are also available in other sizes and as Square tube track system or I-profile system.
- Features: -Optimal reliability
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
