General:
- Standard fitted with thrust bearing.
- Swivels for higher working loads available on request.
- SF: 4:1

Product Image 1
Product Image 1
Select a row from the table below, then click the add to quote button

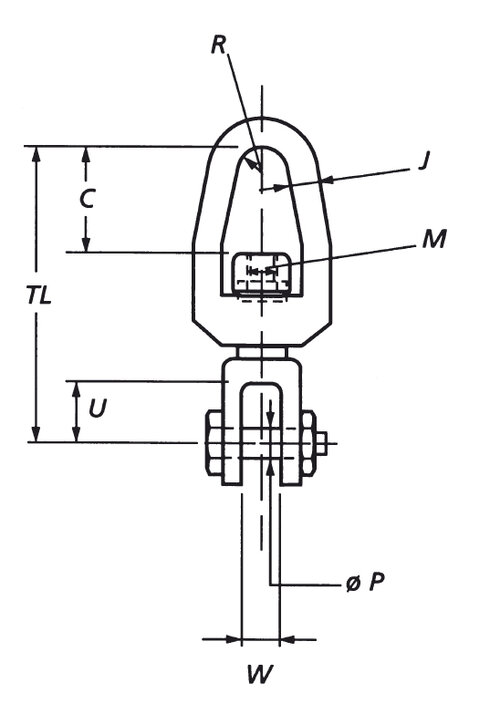

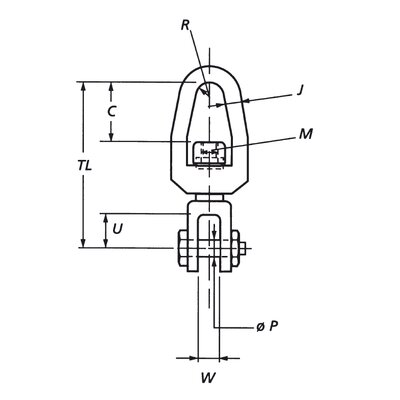

Part Code WLL
ton
C
mm
J1 (mm) M
mm
P
mm
R
mm
TL
mm
U (mm) W
mm
Weight
kg
CAD
11.54510050215 2 65 20 24 24 15 190 35 32 3,5
11.54510050315 3 80 25 30 27 17 220 36 32 5
11.54510050615 6 100 30 45 39 25 285 51 45 10
11.54510050815 8 120 40 48 45 25 350 56 49 20
11.54510051015 10 140 40 52 48 30 370 63 55 30

Download CAD
