General:
- Standard fitted with thrust bearing.
- Swivels for higher working loads available on request.
- SF: 4:1

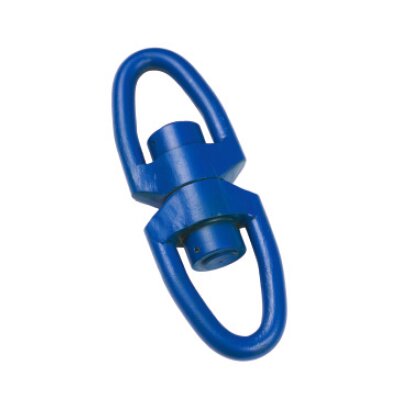

Product Image 1

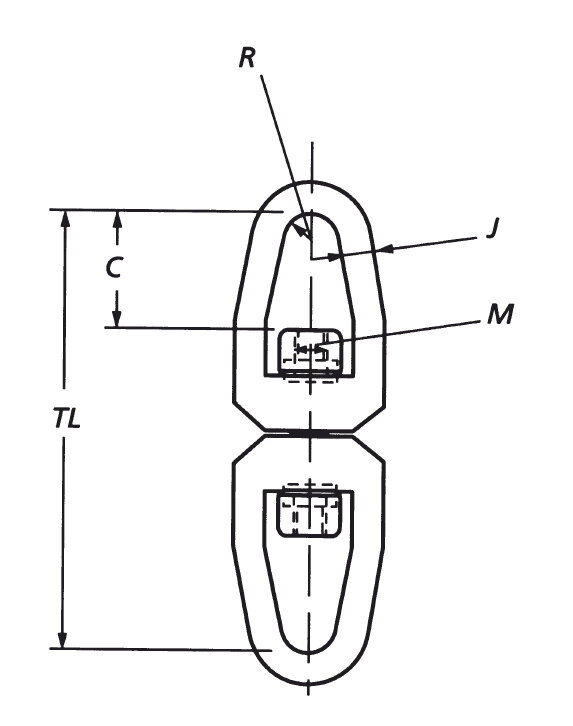

Product Image 2
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
C
mm
J
mm
M
mm
R
mm
TL
mm
Weight
kg
CAD
11.54510050255 2 65 20 24 15 245 4
11.54510050355 3 80 25 30 17 305 6
11.5451.0050655 6,3 100 30 45 25 385 12
11.54510050855 8 120 40 48 25 515 24
11.54510051055 10 140 40 52 30 545 32
11.54510051255 12,5 150 40 52 30 545 36
11.54510051655 16 170 45 64 40 600 43
11.54510052055 20 192 55 72 50 680 50
