Wire rope grip approved for lifting.

Note: The wire rope grip can be used with 6 or 8-strand steel wire ropes with steel or fiber core, in a wire rope quality of up to 1960 N/mm2. When properly assembled, the assembly can handle up to 90% of the minimum breaking load of the steel wire rope (MBL).
Not for use with compacted or hammered wire ropes.
It is not recommended to use plastic covered ropes for lifting purposes with wire rope clamps.
Follow the fitting instructions in the user manual before use.

  • Material: 4-5 and 6 mm are casted, the rest are dropforged.
  • Finish: 4-5 and 6 mm zinc-plating, the rest hot dip galvanizing.
  • Warning: In case the clamps half-parts tangent each other when tightening the bolts, a smaller EUREKA wire clamp shall be used.
    Eureka wire rope grips comes in different dimensions

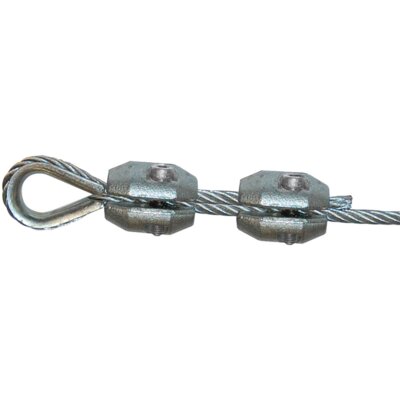

    Recommended to use Eureka wire rope grips in pairs

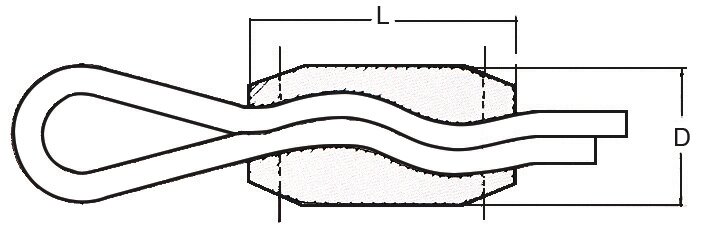

    Eureka wire rope grip measurements
    Select a row from the table below, then click the add to quote button
    Part Code Rope diameter
    mm
    Diameter inch No of clamps when lifting Moment
    Nm
    Bolt Ø
    mm
    Bolt number pcs. D
    mm
    L
    mm
    Weight
    kg/100pc
    10.175032005 4-5 3/16” 2 6 5 2 22 27 6,5
    10.175032006 6 1/4” 2 15 6 2 28 42 14
    10.175032008 8 5/16” 2 18 6 2 33 50 24
    10.175032010 9-10 3/8” 2 30 8 2 42 63 52
    10.175032011 11 7/16” 2 30 8 2 43 62 52
    10.175032013 12-13 1/2” 2 70 10 2 48 82 80
    10.175032014 14 9/16” 2 70 10 2 50 106 115
    10.175032016 15-16 5/8” 2 115 12 2 62 100 170
