General

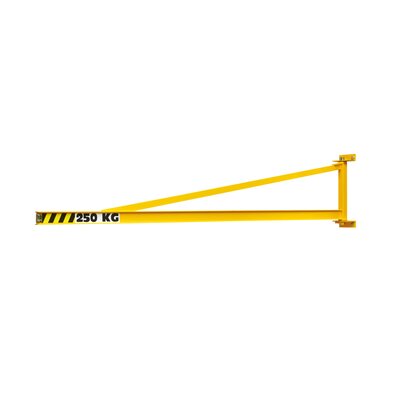

Appropriate for an indoor or outdoor use, the beam of the PMT is built on an I beam profile. Its light weight gives it great flexibility for rotations of 180 °. The structure of this jib crane is suitable for the optional installation of a hoist motor direction. The PMT are delivered with standard mounting brackets and our mounting kits KITFIX (optional) ensure safe anchorages for specific supports.
A full range of accessories is available.

Options
• Hoist power supply cable + lockable main switch
• Standpipe
• Rotation slowing device (adaptable without welding or mechanical intervention)
• Hot dip galvanizing (contact us)
• Rotation stops to weld onto the assembly
• Single- or multi-position rotation lock
• Outdoor use
• Electric or manual hoist

Select a row from the table below, then click the add to quote button
Cap.
kg
Span
m 2,0
Span
m 2,5
Span
m 3,0
Span
m 3,5
Span
m 4,0
Span
m 4,5
Span
m 5,0
Span
m 5,5
Span
m 6,0
Span
m 6,5
Span
m 7,0
Span
m 7,5
CAD
150
250
500
1 000
1 600
2 000

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
