General:

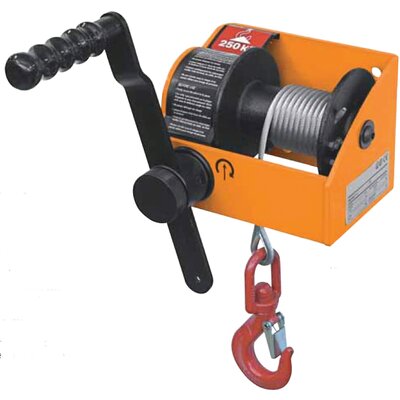

Manual wormgear winch capacity from 250 up to 3000 kg.
Technical characteristics:
- Encased mechanism.
- Automatic brake.
- Adjustable removable crank.
- Very robust thanks to exceptionally sturdy chassis.
- Mechanical parts protected with cataphoretic coating.
- Can be declutched only when unloaded; safety system prevents declutching when loaded.
Currently this product cannot be added to an online quote. Please contact us directly for enquires.
|
Type
|
load capacity
1st layer |
Max. cable
length |
Max. number
of layers |
Required
Cranck force |
Weight
without cable |
|
Art No
|
kg
|
m
|
|
daN
|
kg
|
|
MV1
|
250
|
15
|
4
|
11
|
7.5
|
|
MV2
|
500
|
17
|
4
|
14
|
12
|
|
MV3
|
1000
|
30
|
4
|
14
|
37.5
|
|
MV4
|
1500 |
23
|
3
|
14
|
45
|
|
MV5
|
2000
|
17
|
2
|
14.5
|
70
|
|
MV6
|
3000
|
10
|
1
|
16
|
120
|
|
Type
|
capacity
|
Dimensions (mm)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||
|
|
kg
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
J
|
K
|
øL
|
M
|
N
|
øP
|
Q
|
R
|
|||||||||||||||
|
MV1
|
250
|
150
|
330
|
150
|
200
|
250
|
137
|
100
|
25
|
15
|
118
|
4ø11
|
89
|
75
|
60
|
100
|
24
|
|||||||||||||||
|
MV2
|
500
|
180
|
360
|
180
|
260
|
250
|
182
|
130
|
32
|
18
|
142
|
4ø13
|
109
|
90
|
70
|
145
|
30
|
|||||||||||||||
|
MV3
|
1000
|
300
|
490
|
300
|
300
|
340
|
167
|
-
|
32
|
21
|
250
|
4ø17
|
180
|
146
|
101
|
176
|
30
|
|||||||||||||||
|
MV4
|
1500
|
300
|
490
|
300
|
300
|
340
|
167
|
-
|
32
|
21
|
250
|
4ø17
|
180
|
146
|
101
|
176
|
30
|
|||||||||||||||
|
MV5
|
2000
|
345
|
540
|
345
|
405
|
340
|
160
|
-
|
40
|
25
|
295
|
4ø21
|
222
|
168
|
121
|
275
|
40
|
|||||||||||||||
|
MV6
|
3000
|
525
|
700
|
460
|
510
|
340
|
390
|
70
|
40
|
380
|
6ø25
|
325
|
173
|
168
|
300
|
55
|
248
|
|||||||||||||||
