General: Stationary access to buildings and machinery up to a height of 10 m, also suitable and approved for use as an escape route.

Features and benefits:
- For stationary mounting, on buildings for maintenance in accordance with DIN 18 799-1.
- For stationary mounting, on buildings as an emergency ladder system in accordance with DIN 14 094-1.
- For stationary mounting, on buildings as machine access steps in accordance with DIN EN ISO 14 122-4.
- Safety cage as safety system, complies with any standard.
- Arrester rail as a safety system in accordance with DIN EN 353-1, DIN 18 799-1 and DIN EN ISO 14 122-4, can be supplied as a single-section fixed ladder
even with climbing heights of over 10 m.
- Ladder width 520 mm.
- Wall brackets with various wall distances up to 600 mm can be selected.
- The max. distance between the individual wall brackets is max. 2.00 m.
- Each ladder section must be mounted with at least 2 wall brackets.
- Safety barriers, access protection and platforms can be selected to suit individual requirements.
- We can also produce fixed-ladder designs that differ from the standard specification on request.


- The prices for single-section systems listed below are calculated as follows: wall bracket in the form of a U-bar, 200 mm rigid, straight stile extensions on both sides, incl. safety cage in accordance with DIN 18 799-1.

  • Note: Plugs and screws/bolts for wall mounting are not included in the scope of delivery.

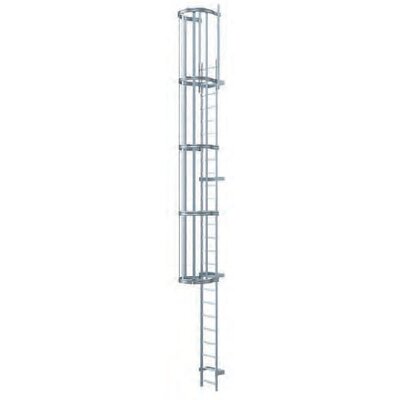

Product Image 1
Currently this product cannot be added to an online quote. Please contact us directly for enquires.
Overview of single parts
anodised aluminium
natural aluminium
galvanised steel
stainless steel V4A (1.457 1)
order no.
order no.
order no.
ladder section 1.96 m (without wall brackets)
41240
42240
43240
44240
ladder section 2.80 m (without wall brackets)
41241
42241
43241
44241
ladder section 3.64 m (without wall brackets)
41242
42242
43242
44242
stile extension, one-side, straight
43243 1)
43243 1)
43243
44243
back hoop 0 700 mm
41244
42244
43244
44244
back strap, length 1400 mm
41245
42245
43245
44245
wall bracket, rigid, stand-off 200 mm
43257 1)
43257 1)
43257
44257
Version
anodised aluminium
natural aluminium
galvanised steel
stainless steel V4A 2)
parts list
access heights up to m
ladder length including stile extension, m
order no.
ladder section 1.96 m
ladder section 2.80 m
ladder section 3.64 m
stile extension
wall anchor, rigid
backhoop
back strap
4.80
5.90
58148
58248
58348
58448
1
1
2
4
5.60
6.70
58157
58257
58357
58457
2
2
4
4
15
6.50
7.60
58165
58265
58365
58465
1
1
2
4
5
20
7.40
8.50
58174
58274
58374
58474
2
2
4
5
20
8.50
9.60
58185
58285
58385
58485
3
2
6
6
25
9.60
10.70
58196
58296
58396
58496
2
2
2
8
7
30
