General:
-
Different shaft sizes possible.
- Groove may be adjusted to other wire rope diameters.

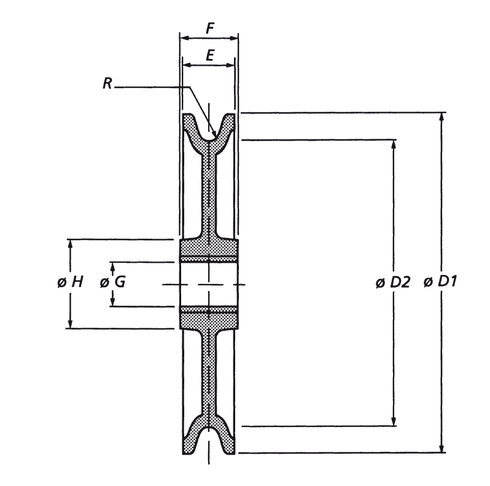

      Product Picture 1

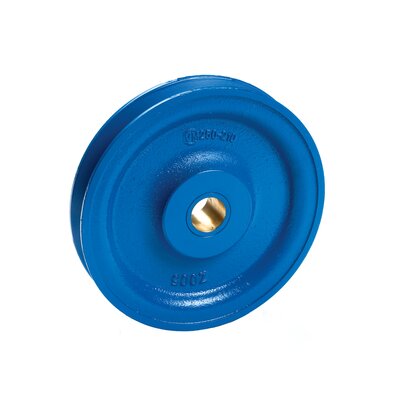

      Product Picture 2
      Select a row from the table below, then click the add to quote button
      Part Code Rope diameter
      mm
      table.heading.Bearing Material Bearing Ø D1
      mm
      Ø D2
      mm
      E
      mm
      F
      mm
      Ø G
      mm
      Ø H
      mm
      R
      mm
      Weight
      kg
      10.35311006001 8 Bronze bearing GGG-60 Bronze 100 80 18 20 15 30 4,5 0,6
      10.35311256001 10 Bronze bearing GGG-60 Bronze 125 105 23 27 22 55 5,5 1,5
      10.35311506001 12 Bronze bearing GGG-60 Bronze 150 120 36 40 30 80 6,5 3
      10.35312006001 14 Bronze bearing GGG-60 Bronze 200 165 36 40 30 80 7,5 4,5
      10.35312506001 18 Bronze bearing GGG-60 Bronze 250 210 40 45 35 90 9,5 8
      10.35313006001 20 Bronze bearing GGG-60 Bronze 300 255 45 50 40 100 11 12
      10.35313507001 22 Bronze bearing GGG-70 Bronze 350 305 45 50 45 115 12 17
      10.35314007001 24 Bronze bearing GGG-70 Bronze 400 345 55 60 50 130 13 24
      10.35314507001 28 Bronze bearing GGG-70 Bronze 450 390 60 70 55 140 15 36
      10.35315007001 30 Bronze bearing GGG-70 Bronze 500 430 70 80 60 150 16 44
      10.35315507001 34 Bronze bearing GGG-70 Bronze 550 480 70 80 70 170 18,5 55
      10.35316007001 36 Bronze bearing GGG-70 Bronze 600 520 85 105 80 190 19,5 80
      10.35316657001 38 Bronze bearing GGG-70 Bronze 665 560 100 110 100 210 20,5 110
      10.35317106001 40 Bronze bearing GGG-70 Bronze 710 630 85 110 120 260 21,5 125
      10.35317206001 44 Bronze bearing GGG-60 Bronze 810 710 98 130 150 150 23,5 170
      10.35319206001 44 Bronze bearing GGG-60 Bronze 920 800 130 150 150 320 22 270
      10.353110302001 48 Bronze bearing GS20Mn5 Bronze 1 030 920 130 150 160 400 22 380
      10.353111603001 52 Bronze bearing GS30Mn5 Bronze 1 160 1 020 140 160 180 460 24,5 540
