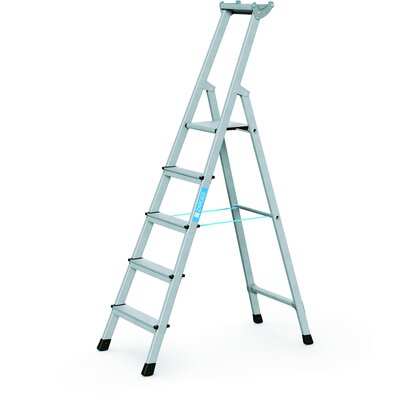

General: High stability, comfortable ascent and descent due to deep treads and smooth external stile surfaces that are comfortable to grip. Single-sided access.

Features and benefits:

  • Treads 85 mm deep for safe standing.
  • Large safety platform (380 x 260 mm) with integrated hinged connection.
  • Optimal stability thanks to the fold-down locking bar on both sides.
  • Practical tray with plenty of space for tools and small items.
  • Two integrated bucket hooks.
  • 7-point connection between tread and stile with reinforcement in the centre of the tread.
  • Smooth external stile surfaces that are comfortable to hold.
  • Treads and stiles made from extruded aluminium sections.
  • Material: Aluminium
  • Marking: According to standard
  • Finish: natural
  • Standard: EN 131 Cat. Professional
  • Note: Max. load 150 kg.
Select a row from the table below, then click the add to quote button
Part Code ladder length
m
working height approx. m Platform height
m
lower, outside width
m
stile height access/support section
mm
number of treads incl. platform Weight
kg
CAD
99.XX40333 1,33 2,7 0,7 0,45 87 / 87 3 6
99.XX40334 1,54 2,9 0,9 0,47 87 / 87 4 7
99.XX40335 1,76 3,1 1,1 0,49 87 / 87 5 8
99.XX40336 1,97 3,35 1,35 0,52 87 / 87 6 9
99.XX40337 2,19 3,55 1,55 0,54 87 / 87 7 10,5
99.XX40338 2,41 3,75 1,75 0,56 87 / 87 8 13
99.XX40340 2,82 4,2 2,2 0,61 87 / 87 10 14

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
