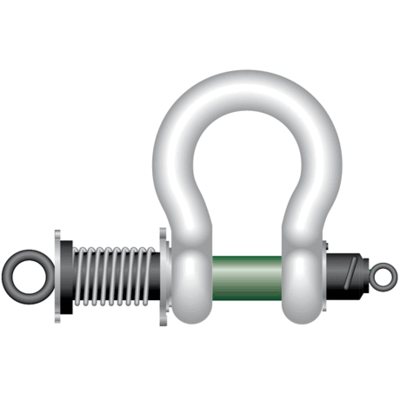

Bow spring release shackle.

This shackle is assembled with wire rope slings and monkey’s fist.
For shackles with size starting from WLL 42.5 t and up a special compression tool/tensioner (sold seperately) is required to assemble the shackle.

Safety factor: 6:1 up til WLL 85 ton. 5:1 for 120 ton and up.

  • Material: Bow and pin alloy steel.
  • Temperature range: -40°C up to +200°C.
  • Finish: Bow white painted, pin green painted.
  • Note: for in-line use only.
  • Grade: 8
Product Image 1
Product Image 3
Product Image 2
Select a row from the table below, then click the add to quote button

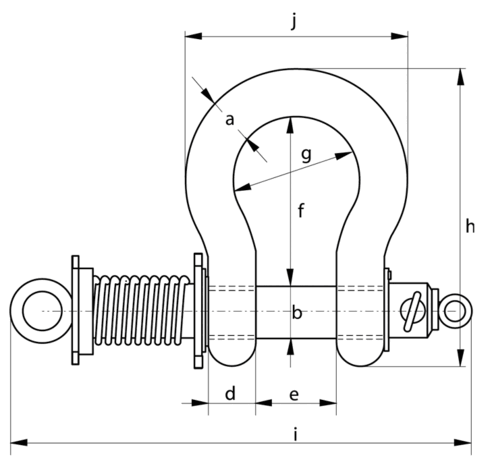

WLL length h
mm
width bow g
mm
length bolt I
mm
width j
mm
diam. bow a
mm
diam. pin b
mm
diam. eye c
mm
width indside e
mm
D
mm
length inside f Weight
kg
CAD
12 201 83 291 147 32 35 72 51 32 115 5,24
13,5 227 92 301 162 35 38 80 57 35 133 7
17 249 99 360 175 38 42 88 60 38 146 9,25
25 300 126 370 216 45 50 103 74 45 178 15,5
35 334 138 400 238 50 57 116 83 50 197 20,4
42,5 377 160 460 274 57 65 130 95 57 222 39
55 433 180 490 310 65 70 145 105 65 260 42
85 527 190 587 340 75 83 162 127 75 329 67
120 646 238 687 428 95 95 208 147 91 399 123
150 688 275 727 485 105 108 238 169 102 410 168

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
