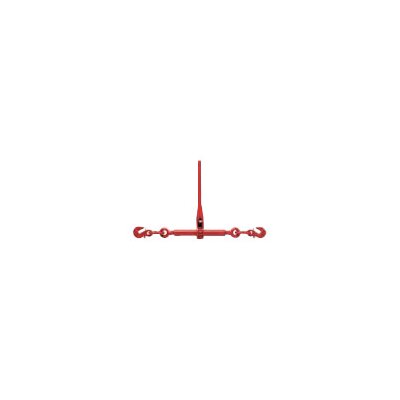

General: Loadbinder ratchet type for short link alloy chain.

Certification : test certificates can be supplied upon request

  • Material: high tensile steel
  • Marking: According to standard
  • Standard: EN 12195-3
  • Safety factor: 2:1
  • Grade: 8
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button
Code LC
kN
Take up
mm
Length closed L
mm
Length open L
mm
mouth width G
mm
Weight
kg
CAD
RLSP 08 0,019 145 586 731 12 4,6
RLSP 10 0,019 145 626 771 15 5,4
RLSP 13 0,03 145 708 853 19,5 8
