General purpose rope for a variety of marine applications; mooring, towing, fishing, pick-up lines, lifting slings, general purpose use. Resistant to rot, most acids and alkalies. The fibre is UV-stabilized against sunlight.

Standard length: 220m : 4-16mm spool - 18-48mm coil
Specific gravity: 0,91 (floats).
Melting point: Approx. 165°C.
Elongation: Approx. 30%.
Strength wet/dry: 100%.
Shock absorption: Very good.
Water absorption: None.
Abrasion resistance: Good.

Features: Spliced fibre.
Material: Polypropylene.
Marking: According to standard
Finish: Orange. Other colours possible on request.
Standard: EN ISO 1346

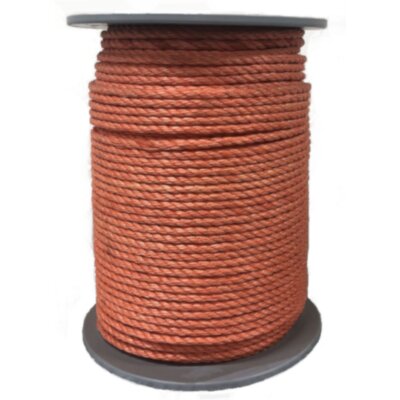

Polypropylene fibre rope 3-strand orange

Select a row from the table below, then click the add to quote button

Part Code	Diameter mm	MBL kN	Rope ends	Weight kg/220m
12.03PPE040OEC22	4	2,7	Plain ends	1,6
12.03PPE050OEC22	5	3,9	Plain ends	2,4
12.03PPE060OEC22	6	5,4	Plain ends	3,7
12.03PPE080OEC22	8	9,4	Plain ends	6,6
12.03PPE100OEC22	10	14	Plain ends	10
12.03PPE120OEC22	12	19,9	Plain ends	14,5
12.03PPE140OEC22	14	27,4	Plain ends	20
12.03PPE160OEC22	16	34,3	Plain ends	25,5
12.03PPE180OEC22	18	43,6	Plain ends	32,5
12.03PPE200OEC22	20	52,7	Plain ends	39,5
12.03PPE220OEC22	22	63,7	Plain ends	48,5
12.03PPE240OEC22	24	74,5	Plain ends	57
12.03PPE260OEC22	26	87,8	Plain ends	67
12.03PPE280OEC22	28	99,1	Plain ends	78
12.03PPE320OEC22	32	126	Plain ends	101
12.03PPE360OEC22	36	158	Plain ends	129
12.03PPE400OEC22	40	190	Plain ends	158
12.03PPE440OEC22	44	229	Plain ends	194
12.03PPE480OEC22	48	266	Plain ends	229

Last 2 digits in the art.no. indicates the number of meters (e.g. 22 = 220m)

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
