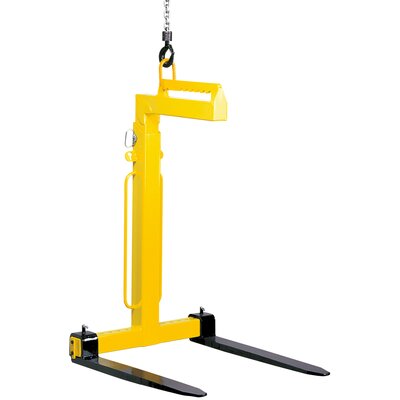

General: Yale Tigrip Crane forks model TKG vh - Capacity 1000 - 5000 kg
These crane forks are adjustable in height and equipped with adjustable fork tines. The balancing system engages when the shackle is manually hooked into the appropriate notch.

Features:

  • Safety factor 4:1
  • Maintenance-free
  • Highly visible safety colour.
  • For the transport of rings or coils, the fork tines are simply pushed together.
  • Easily adjustable tines for all pallet sizes.
  • Adjustable height.
  • Marking: CE-marked
  • Warning: The load must not exceed the fork length. For the transport of loads above persons (e.g. on construction sites) appropriate security measures against falling loads or parts must be taken.
TKG VH
Select a row from the table below, then click the add to quote button

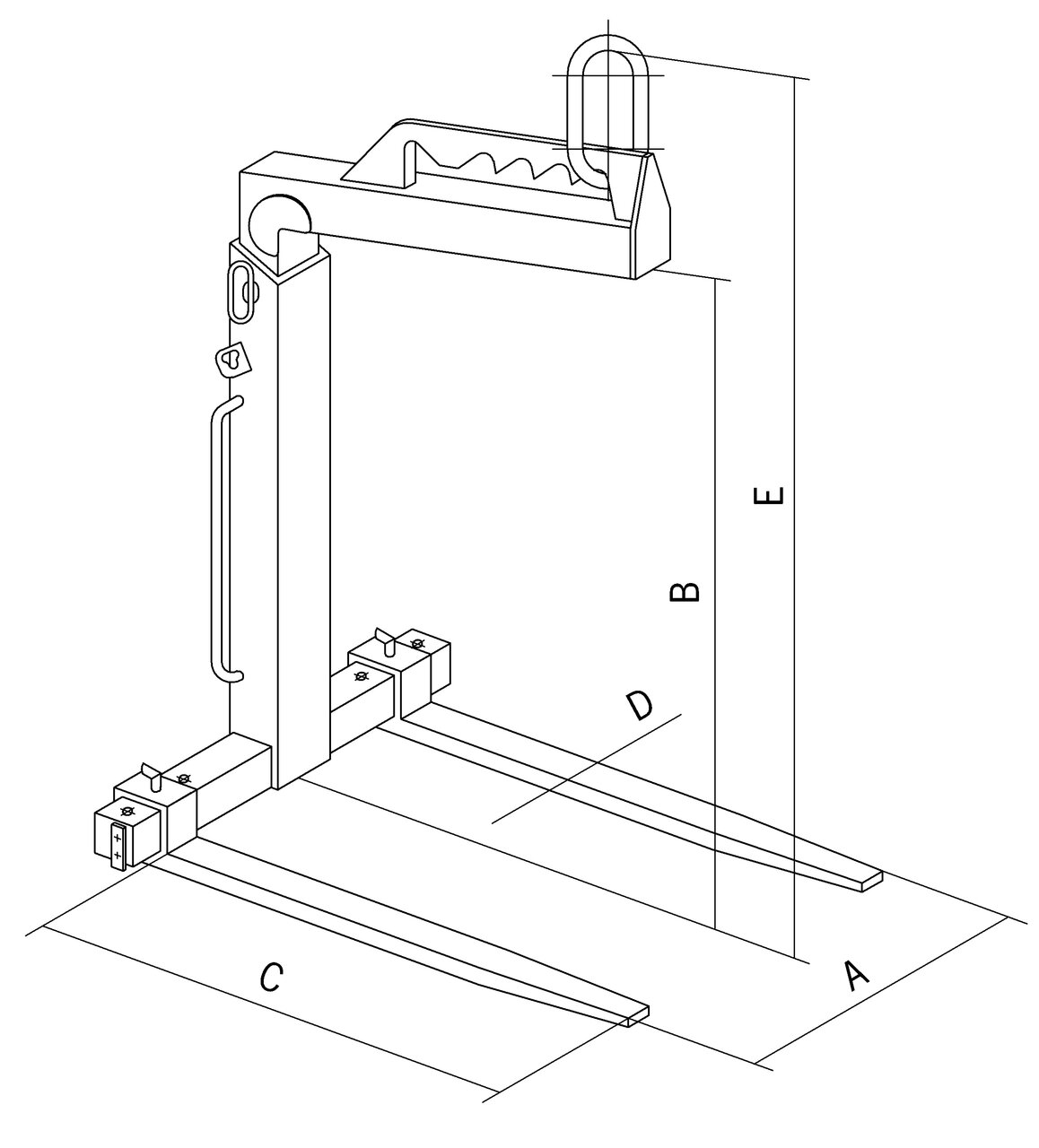

Part Code Model Capacity
kg
A
mm
B
mm
C
mm
D
mm
E
mm
Weight CAD
13.30TGK10VH TKG 1,0 vh 1 000 350-900 1100-1600 1 000 100x30 1390-1890 128
13.30TGK15VH TKG 1,5 vh 1 500 350-900 1300-2000 1 000 100x40 1600-2300 148
13.30TGK20VH TKG 2,0 vh 2 000 400-900 1300-2000 1 000 120x40 1640-2340 193
13.30TGK30VH TKG 3,0 vh 3 000 450-900 1300-2000 1 000 120x50 1670-2370 248
13.30TGK50VH TKG 5,0 vh 5 000 500-1000 1300-2000 1 000 150x60 1700-2400 388

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
