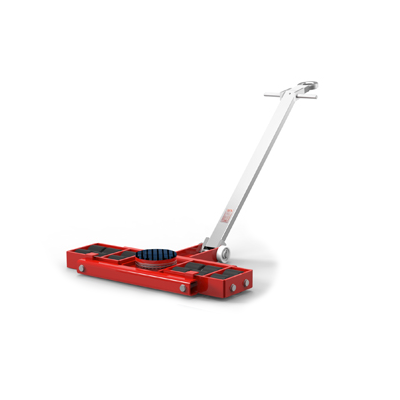

The GKS worldwide approved transport trolleys solving your in-house heavy load standards - safe and perfect! Series F and L – the perfect 3-point moving solution for safe and simple transport. F trolleys – the rear axle of the load moving system with adjustable connecting bar to fit under heavy loads of almost any width. L trolleys – the front steering support with swivel top and tow eye to guide your loads safely. Wheels - special GKS wheels, that do not mark floors. Low rolling resistance and highest stability for numerous uses.

L9/F9 set:

  • Standard transport set for heavy loads up to 18 tons.
  • Can be combined with Tandem trolleys TL6/TL12 or rotating trolleys RL2 / RL4 / RL6

Contact us for more possibilities! Sets available up to 120 t.

Select a row from the table below, then click the add to quote button
Part Code Type Loading height
Single load
Swivel plate dia.
l x w
Swivel plate steerable at Wheels diameter
Steering rod
l9-f9 total cap.
Number of wheels Weight
16.99GKSL09 Front, steerable 110 9 170 840 x 583 ca. 90° 85x85 1 080 18 12 59
