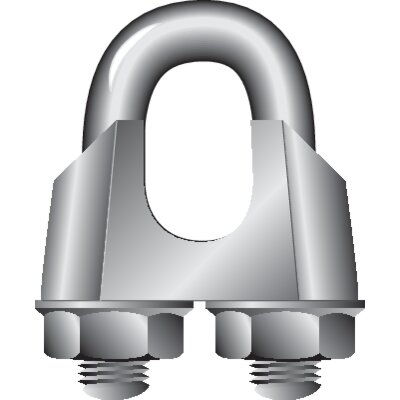

U-bolt : mild steel
• Standard : EN 13411-5 Type A Formerly DIN 1142

• Certification : a works certificate can be supplied upon request
  • Material: Bridge : malleable steel
  • Marking: According to standard
  • Finish: electro-galvanized
  • Standard: EN 13411-5
    Select a row from the table below, then click the add to quote button

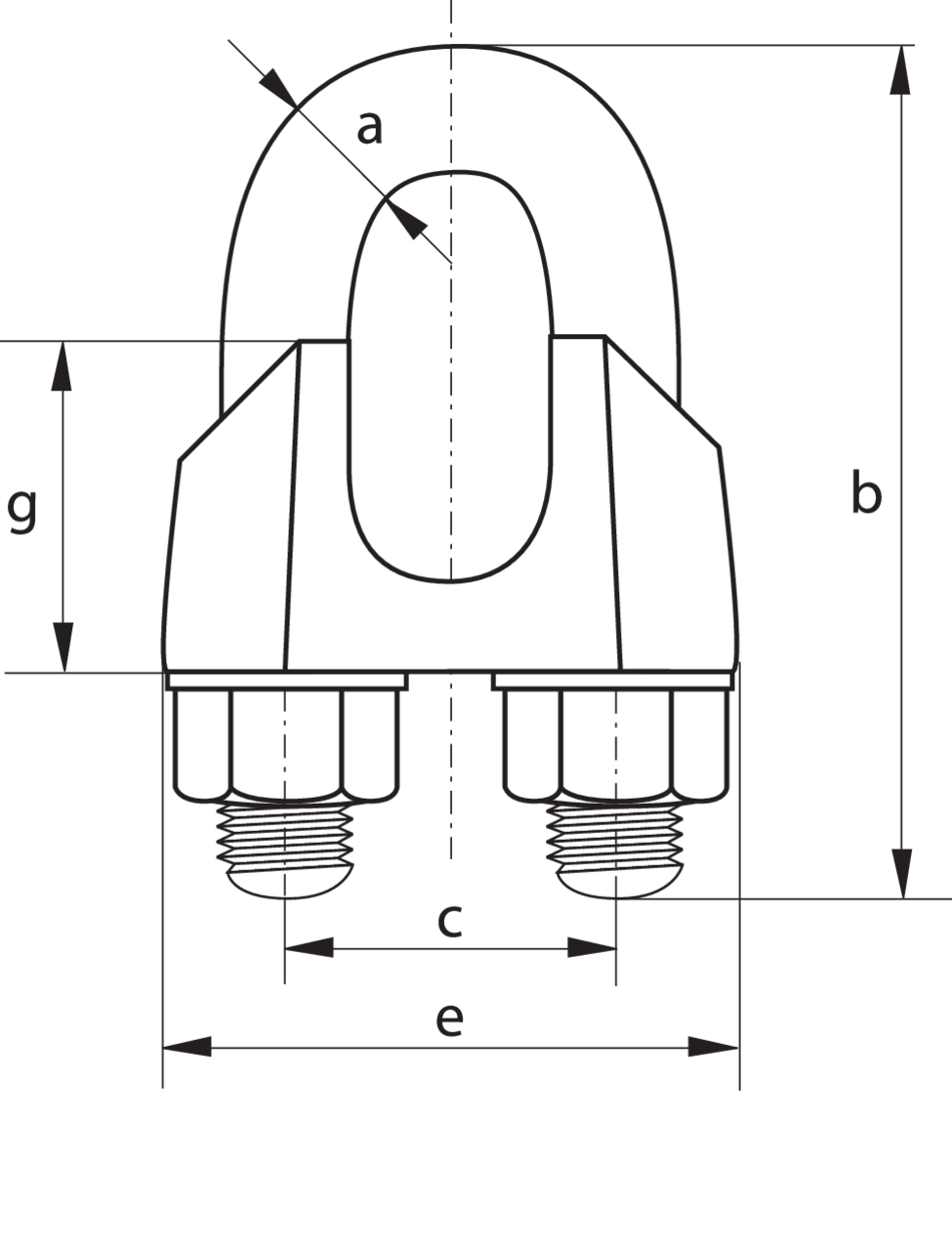

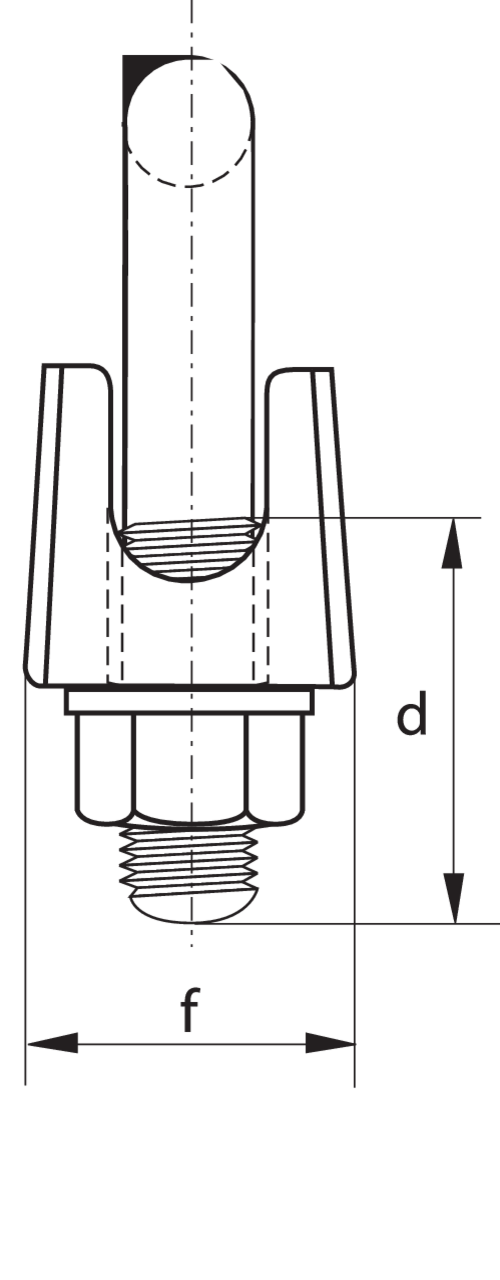

    Rope diameter A
    mm
    B
    mm
    C
    mm
    D
    mm
    e
    mm
    f
    mm
    g
    mm
    Weight
    kg/100pc
    CAD
    5 5 25 12 14 25 13 13 2 -
    6,5 6 32 14 17 30 16 14 4 -
    8 8 41 18 20 39 20 18 8,2 -
    10 8 46 20 24 40 20 21 9,2 -
    12 10 56 24 28 50 25 24 21,5 -
    13 12 64 29 29 55 28 29 27,5 -
    14 12 66 28 31 59 30 28 39,5 -
    16 14 76 34 35 64 32 35 43 -
    19 14 83 37 36 68 33 40 49 -
    22 16 96 41 40 74 34 44 68 -
    26 20 111 46 50 84 38 51 117 -
    30 20 127 54 55 95 41 59 140 -
    34 22 141 60 60 105 45 67 213 -
    40 24 159 68 65 117 49 77 268 -
