Certification: at no extra charge this product can be supplied with a works certificate and/or EC Declaration of Conformity

  • Material: base: mild steel, ring: alloy steel
  • Finish: painted red
  • Note: welding must be done in accordance with DIN 5817 resp. 15429, by a qualified welder according to EN 287-1
  • Safety factor: MBL equals 4 x WLL
  • Grade: 8
Select a row from the table below, then click the add to quote button

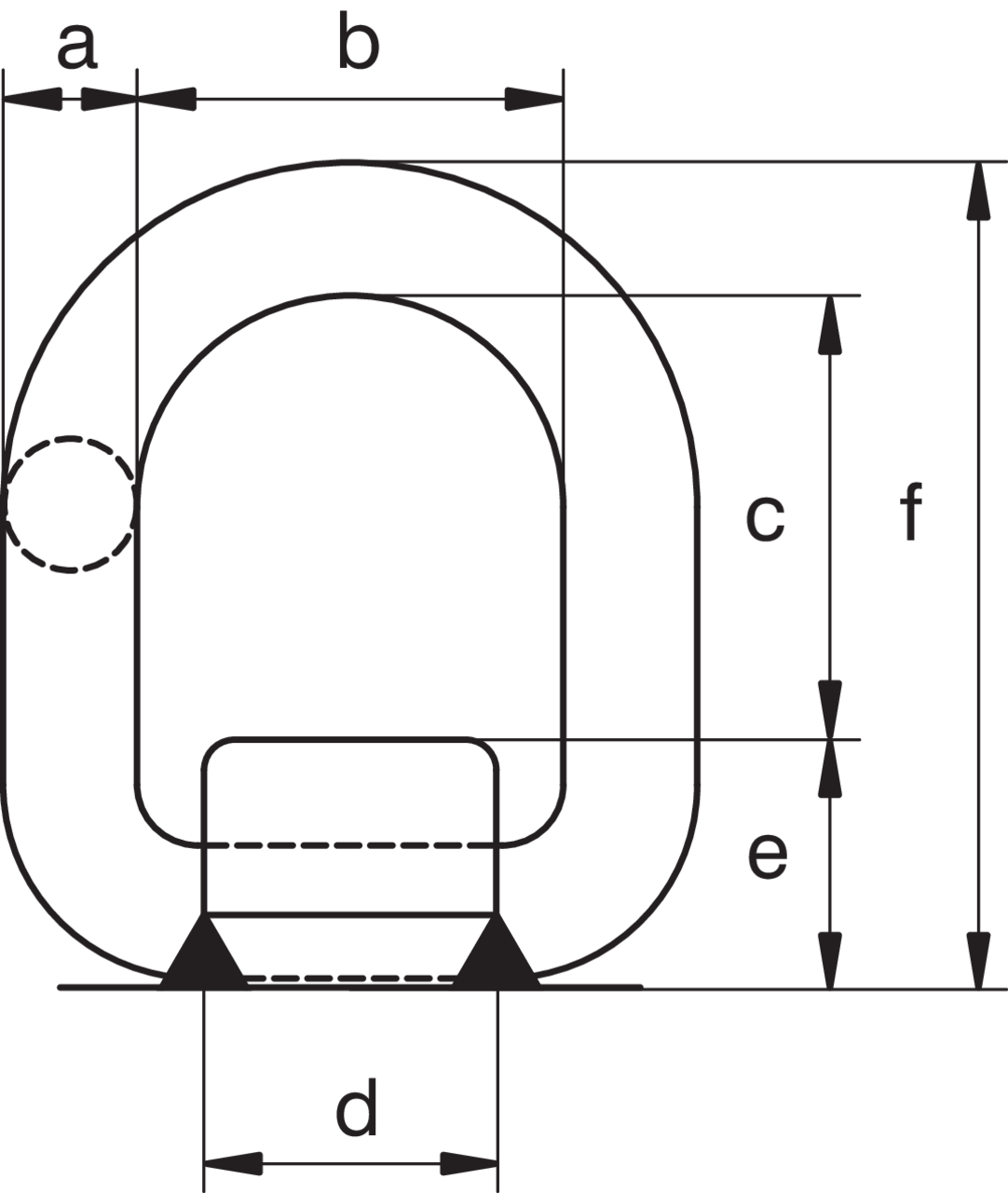

Code Diameter
mm
WLL
ton
Size A
mm
B
mm
C
mm
D
mm
e
mm
f
mm
Weight
kg
CAD
PAS1 13 1,2 84 13 40 42 35 28 84 0,4
PAS3 18 3,2 101 18 45 48 42 33 101 0,77
PAS5 22 5,3 123 22 55 57 49 44 123 1,42
PAS8 26 8 145 26 70 67 64 51 145 2,5
PAS12 28 12,8 173 28 85 90 78 55 173 3,7
PAS15 34 15 191 34 99 93 90 63 191 5,67

Download CAD
