Triple Swivel Ring Codipro TSR - Mennens Netherlands

Home / Products / LIFTING EQUIPMENT / Chain & components / Lifting eyes / Triple Swivel Ring Codipro TSR

The TSR ring is a triple swivel model with two pivots. It can be used for smooth tilting, turning and flipping, The optimised design prevents any damage to the sling and load while the ring is swivelling and ensures perfect alignment with the sling. However, the TSR triple swivel ring is not recommended for lengthy rotations of full loads.

It consists of a steel ring that has a rotating range of 360°.

- Maximal articulation
- Move the hook away from the load to lift
- Optimal hook position

Marking: According to standard, CE-marked
Standard: EN 1677-1
Note: M48 - M56 have SF 4:1

Safety factor: 5:1
Grade: 8

Select a row from the table below, then click the add to quote button

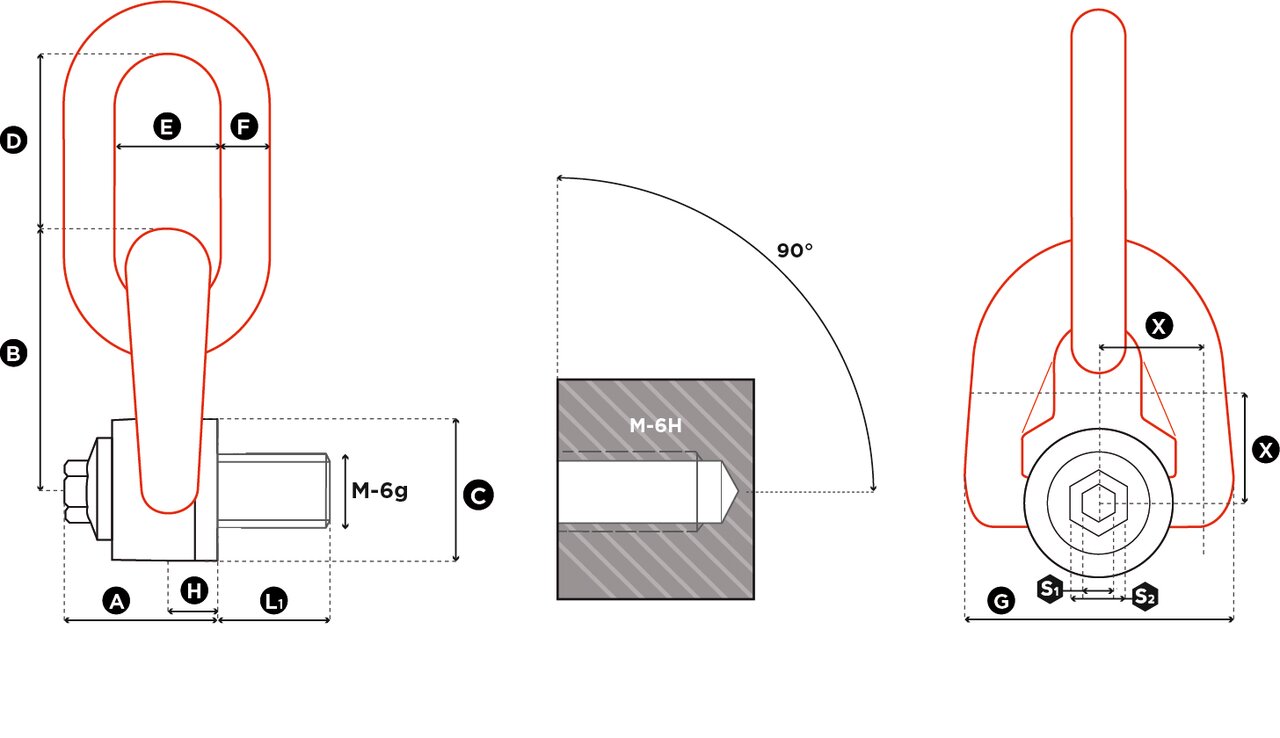

Part Code	WLL ton	Thread	Torque Nm	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	S1 mm	S2 mm	Weight kg
11.41TSR M 8	0,3	M8 (x1,25)	6	33	56	30	41	25	10	58	9,5	8	16	0,4
11.41TSR M 10	0,6	M10 (x1,50)	10	33	56	30	41	25	10	58	9,5	8	16	0,4
11.41TSR M 12	1	M12 (x1,75)	15	33	56	30	41	25	10	58	9,5	8	16	0,4
11.41TSR M 14	1,3	M14 (x2)	30	45	76	45	56	37	14	79	13	8	20	1,1
11.41TSR M 16	1,6	M16 (x2)	50	45	76	45	56	37	14	79	13	8	20	1,2
11.41TSR M 18	2	M18 (x2,5)	70	45	76	45	56	37	14	79	13	8	20	1,2
11.41TSR M 20	2,5	M20 (x2,5)	100	45	76	45	56	37	14	79	13	8	20	1,2
11.41TSR M 22	3	M22 (x2,5)	120	62	105	60	80	45	20	106	19	14	24	2,8
11.41TSR M 24	4	M24 (x3)	160	62	105	60	80	45	20	106	19	14	24	2,9
11.41TSR M 27	5	M27 (x3)	200	62	105	60	80	45	20	106	19	14	24	2,9
11.41TSR M 30	6,3	M30 (x3,5)	250	62	105	60	80	45	20	106	19	14	24	3
11.41TSR M 36	10	M36 (x4)	320	81	140	80	111	71	30	148	26,5	14	30	7,6
11.41TSR M 42	12,5	M42 (x4,5)	400	84	146	80	111	71	30	148	26,5	14	30	7,8
11.41TSR M 48	20	M48 (x5)	600	100	178	110	135	90	42	180	33	19	30	17,5
11.41TSR M 56	22	M56 (x5,5)	600	104	184	110	135	90	42	190	33	19	30	18

Also available in UNC-thread

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD

Download
