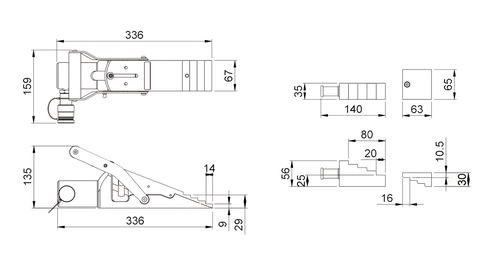

General: Vertical Lifting Wedge - Spring return - HVLW 16 S 2.

- Automatic mechanical retraction of lifting plate.
- Minimum insertion space of 9 mm.
- Vertical lifting stroke of 20 mm at each step.

Standard supplied with:
- Safety block.
- Step block.
- Grease pistol.
- Grease cartridge Molycote®.
- Plastic carrying / storage box.

  • Features: 100% vertical lifting movement; prevents misalignment of load.

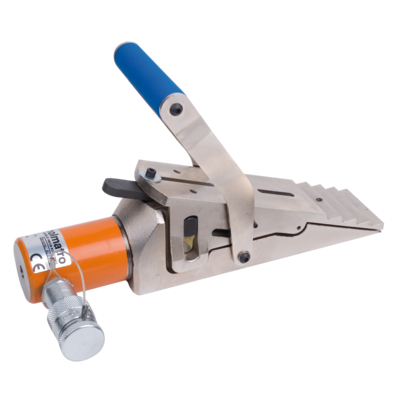

Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button
Model required oil cc tonnage t max. working pressure
bar / Mpa
return type min. insertion space
mm
lifting stroke
mm
max. spreading force
kN/t
Weight
kg
CAD
HVLW 16 S2 75 16 720 / 72 spring 9 20 156.6 / 16 8,8
