Hollow Plunger Cylinder HHJ S - Mennens Netherlands

Home / Products / HYDRAULIC SYSTEMS / Hollow Plunger Cylinder HHJ S

General:
- Max. working pressure: 720 bar/ 72 Mpa
- Acting type: single
- Return type: spring
- Compact
- Usable in all positions
- Protected against ejection of plunger
- Hollow saddle prevents damage to the plunger. Easy to replace

Standard supplied with:
- High Flow female coupler A 118
- Hollow saddle Exept for models HHJ 5 S and HHJ 12 S

Available on request:
- Cylinders manufactured in conformity with customer specifications
- Collar thread
- Base mounting holes

Material: steel

Select a row from the table below, then click the add to quote button

Part Code	Model	tonnage tons	stroke length mm	Closed height mm	A mm	B mm	C mm	D mm	E mm	F mm	R mm	S thread size	Weight kg
16.40100.111.002	HHJ 5 S 2.5	5	25	87	87	60	28	90	24	87	17		1,9
16.40100.111.021	HHJ 12 S 5	12	50	156	156	86	40	90	27	156	21		6,3
16.40100.112.023	HHJ 17 S 5	17	50	192	192	90	46	90	31	178	27	M38x1.5	7,3
16.40100.112.033	HHJ 20 S 5	20	50	182	182	100	50	90	31	170	27	M38x1.5	8,6
16.40100.111.029	HHJ 12 S 15	12	150	298	298	86	40	90	27	298	21		11
16.40100.112.055	HHJ 30 S 7.5	30	75	226	226	118	60	90	33	214	33	M50x1.5	15
16.40100.112.030	HHJ 20 S 15	20	150	389	389	100	50	90	31	377	27	M38x1.5	18
16.40100.112.034	HHJ 30 S 15	30	150	362	362	120	60	90	32	350	33	M50x1.5	25
16.40100.112.081	HHJ 60 S 7.5	60	75	272	272	166	80	70	41	257	45	M65x1.5	34,5
16.40100.112.061	HHJ 45 S 15	45	150	388	388	140	65	70	36	376	39	M54x1.5	35,5
16.40100.112.101	HHJ 110 S 7.5	110	75	315	315	238	130	70	40	295	80	M105x2	78,3

Download CAD

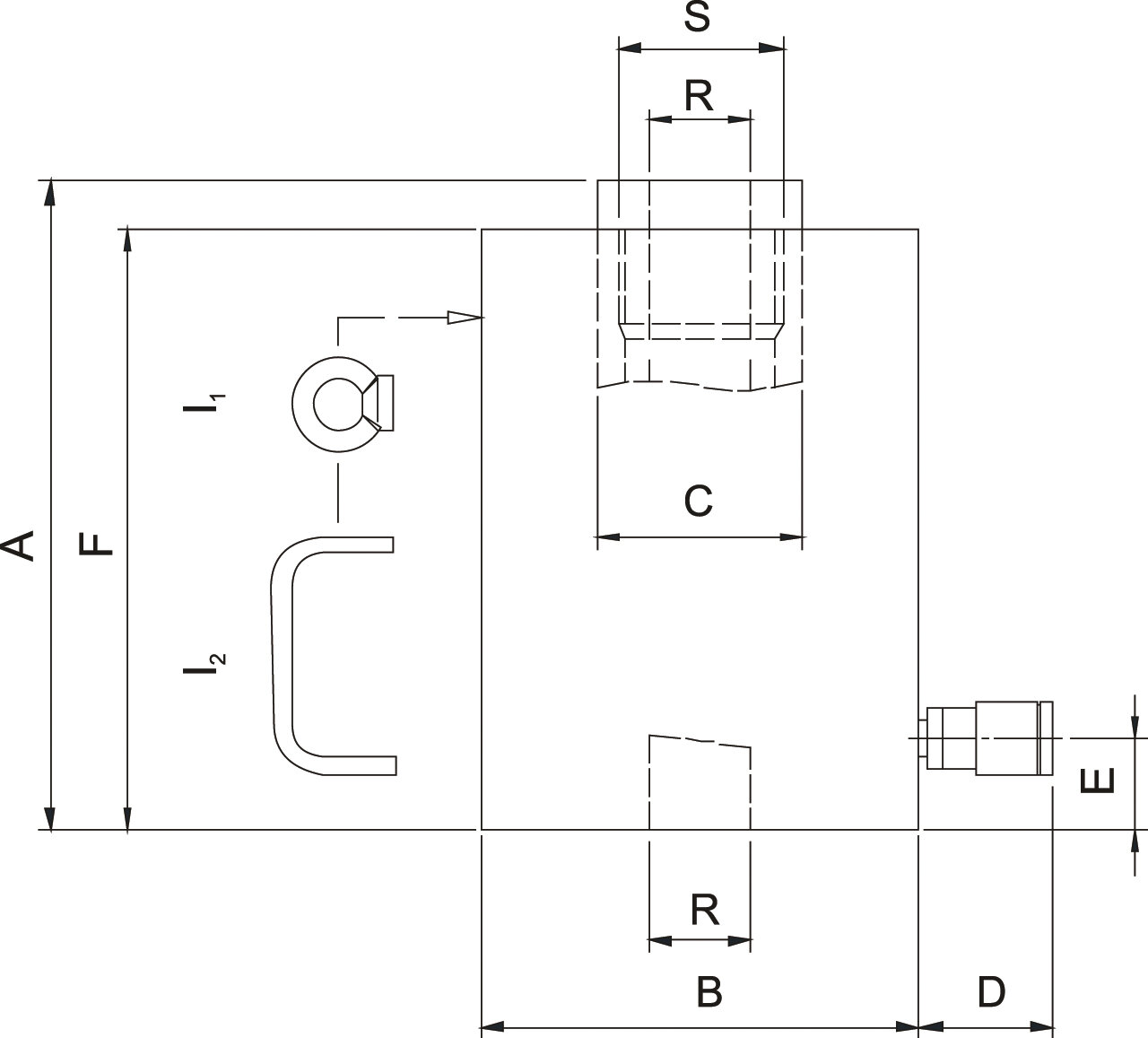

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD

Download
