General:
- Max. working pressure: 720 bar/ 72 Mpa
- Acting type: single
- Return type: gravity
- Compact, Lightweight
- Usable in all positions
- Protected against ejection of plunger
Standard supplied with:
- High Flow female coupler A 118
- HFJ 10/30 G 4 contains a 30 cm connecting hose with anti-kink spring
- HJ 20/50 G 11 contains a flat saddle
Available on request:
- Cylinders manufactured in conformity with customer specifications
- Base mounting holes
- Material: steel

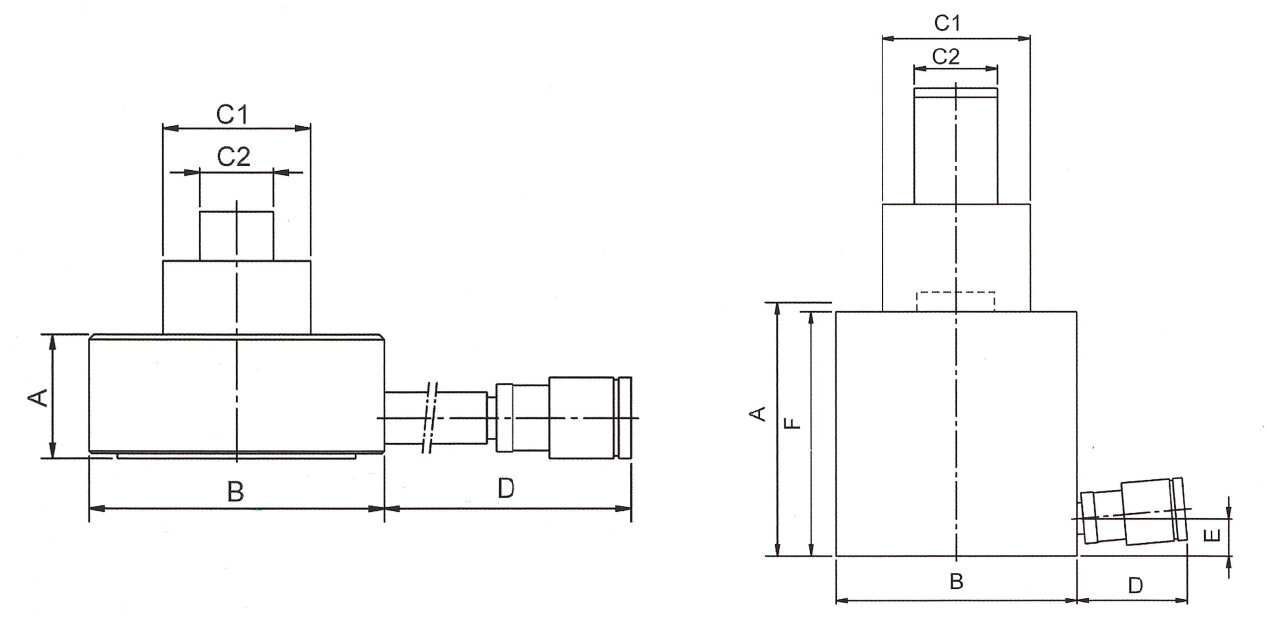

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
