General:
PA H 2 series , single acting, 2 stage, hand pumps.


- Light weight; easy to carry and operate.
- Low operating force required; minimal user effort.
- Soft-grip handles; more comfort and grip.
- Anti-slip rubber underneath; pump is stable and does not shift.
- Pump handle lock; easy and sfe to carry
- Service- and maintenance friendly; Easy access to and replacement of technical parts
without removing the oil tank.
- High oil output; quicker action.
- Accurately adjustable pressure release valve; load can be lowered safely and with extreme control.
- Integrated gauge connection on the pump block; No extra component needed if pressure
gauge is used. Gauge can be directly mounted at an angle of 45 degrees.
- Oil level glass in the tank; easily check the oil level in both horizontal and vertical position.
- Integrated filler funel; top up oil easily and quickly without extra accessoiries.
- Push & Unlock pump handle lock; unlocking is quick and easy with one push on the pump handle.

  • Features: - Ergonomic design.
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

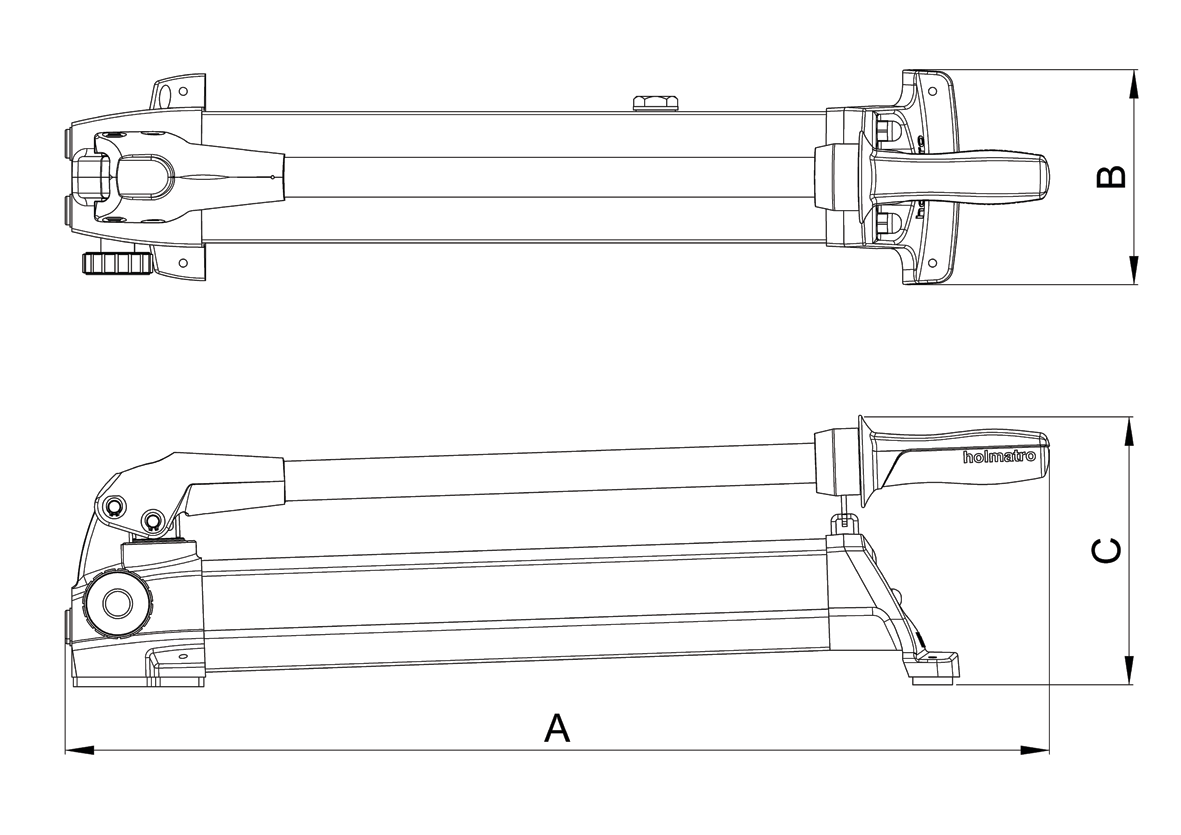

Size Model max. working pressure (bar/Mpa) max. operating force kg oil capacity cc connection A
mm
B
mm
C
mm
Weight
kg
CAD
434 PA 04 H 2 720 / 72 32 500 3/8"NPT female 434 135 165 3,4
619 PA 09 H 2 720 / 72 33 1 000 3/8"NPT female 619 135 170 4,7
700 PA 18 H 2 720 / 72 35 1 990 3/8"NPT female 700 169 175 7,6
700 PA 38 H 2 720 / 72 35 4 150 3/8"NPT female 700 183 175 11,4
897 PA 58 H 2 720 / 72 34 6 150 3/8"NPT female 897 182 185 14,6
