The GKS worldwide approved transport trolleys solving your in-house heavy load standards - safe and perfect! Series F and L – the perfect 3-point moving solution for safe and simple transport. F trolleys – the rear axle of the load moving system with adjustable connecting bar to fit under heavy loads of almost any width. L trolleys – the front steering support with swivel top and tow eye to guide your loads safely. Wheels - special GKS wheels, that do not mark floors. Low rolling resistance and highest stability for numerous uses.

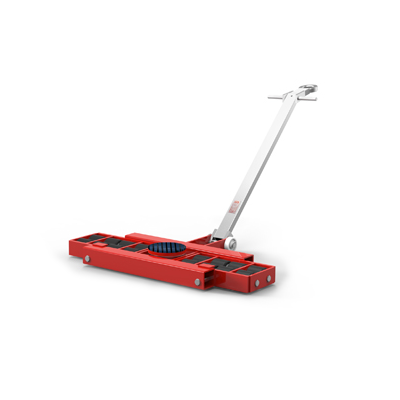

L12/F12 set:

  • Standard transport set for heavy loads up to 24 tons.
  • Can be combined with Tandem trolleys TL6/TL12 or rotating trolleys RL2 / RL4 / RL6

Contact us for more possibilities! Sets available up to 120 t.

Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Type Loading height
mm
Number of wheels Swivel plate dia.
mm
l x w
mm
Wheels diameter
mm
Steering rod
mm
l12-f12 total cap.
ton
Swivel pad steerable at Weight
kg
CAD
16.99GKSL12 12 Front, steerable 110 16 170 1.030x620 85x85 1 080 24 ± 90° 80
