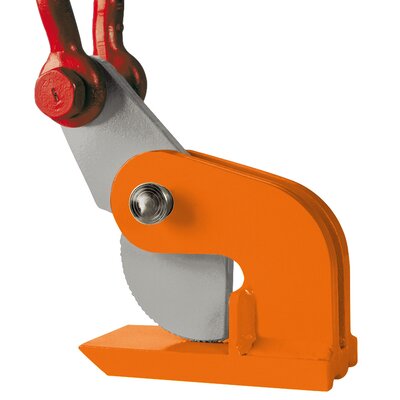

General: For lifting and horizontal moving of thin sheets that deflect when being lifted. Compact shape and relatively low unit weights with a high lifting capacity. Horizontal lifting clamps DHW must always be used in pairs (or multiples thereof). Max. apex angle: 60°

Product Image 1

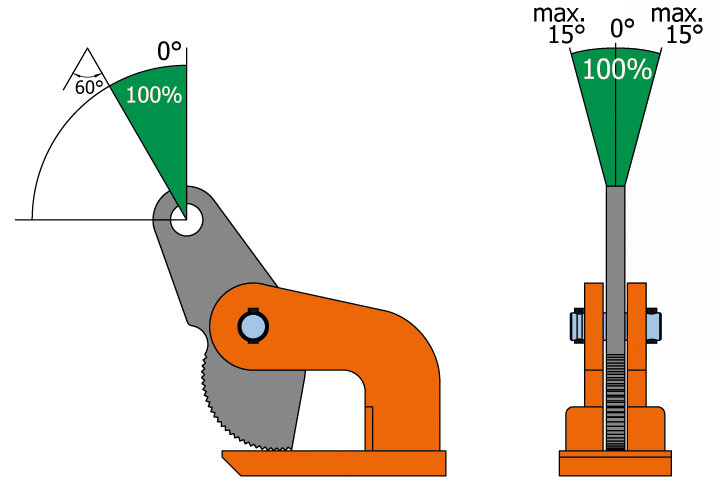

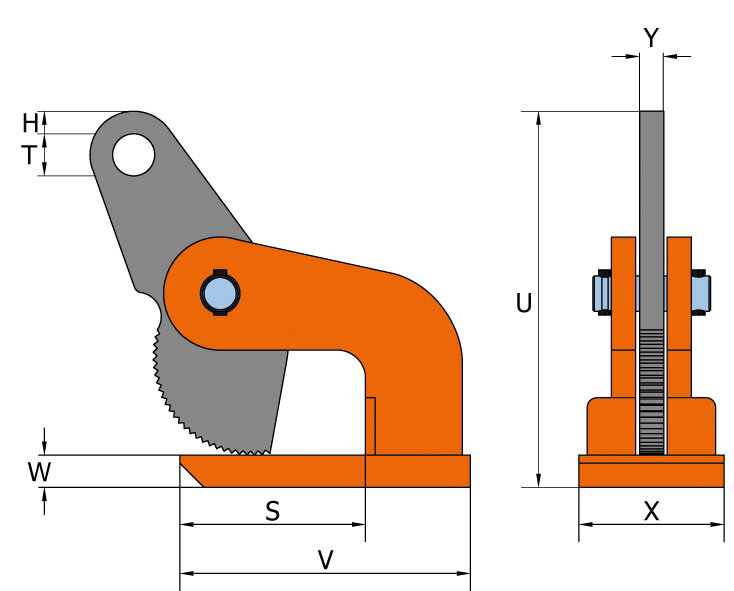

Pewag DHW drawing Pewag DHW load diagram
Select a row from the table below, then click the add to quote button
Part Code Code X
mm
Y
mm
load capacity
kg/pair
Jaw opening R
mm
V
mm
S
mm
W
mm
T
mm
H
mm
U
mm
Weight
kg
CAD
16.01DHW1t DHW 1 t 65 15 1,000 0-15 140 99 10 22,5 13,5 167 2,5
16.01DHW2t DHW 2 t 80 15 2,000 0-35 180 114 20 26 14 233 8
16.01DHW4t DHW 4 t 130 20 4,000 0-50 235 129 30 40 25 304 18
16.01DHW6t DHW 6 t 130 20 6,000 0-50 235 129 30 40 25 304 18

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
