General:
End feed boxes are used for the connection of the feeder cable to the extreme end of the Click-Ductor system (see picture). All feed boxes are fitted with metric glands. It is possible to use extra glands and/or several diameter ranges from type EB40.
End feed clamps are required for connection of copper conductors 125A or 160A (see details below).

End feed boxes:
Type EBS32
Compact end feed box with cable gland M32, suitable for cables Ø10-Ø21 mm. Connecting screws M6 included.

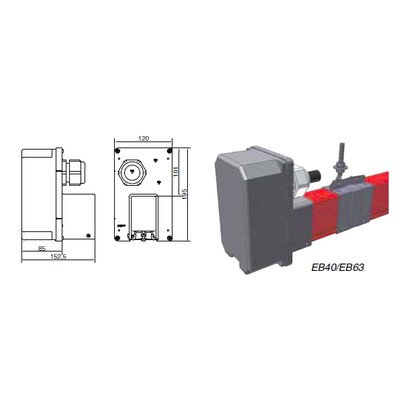

Type EB40
End feed box for with cable gland M40, suitable for cables Ø16-Ø28 mm. The pushthrough holes offer easy mounting of various cable glands. Connecting screws M6 included.

Type EB63 As end feed box EB40, with cable gland M63, suitable for cables Ø30-Ø44,5 mm.

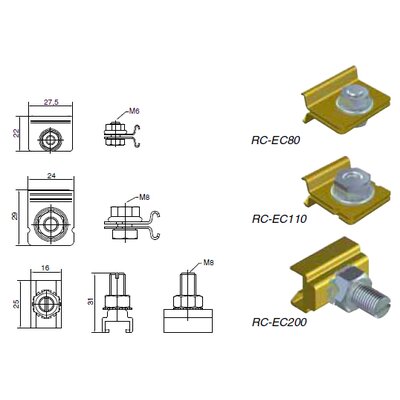

End feed clamps:
Type RC-EC80

Required for connecting copper conductors Cu50A or Cu80 to the end feed box. To be ordered separately.

Type RC-EC110
Required for connecting copper conductors Cu110 to the end feed box. To be ordered separately.

Type RC-EC200
Required for connecting copper conductors 125A, 160A or 200A to the end feed box. Premounted on every Click-Ductor section; no separate ordering required.

Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button
Description Akapp no. outer diameter feeder cable Ø
mm
max. occupation copper conductors Imax (80% DC) non-parallel (A) IP-class excl. AS7 sealing strip IP-class incl.AS7 sealing strip CAD
End feed box EBS32 1xM32 1 006 830 10-21 4xCU80 / 7xCU50 80 IP23 IP44
End feed box EB40 1xM40 1 006 800 16-28 4xCU125 / 7xCU80 125 IP23 IP44
End feed box EB63 1xM63 1 006 810 30-44 4xCU160 / 7xCU80 160 IP23 IP44
End feed box EB 1 006 820 no glands IP23 IP44
End feed clamp RC-EC80 2 109 000 80
End feed clamp RC-EC110 2 109 005 110
End feed clamp RC-EC200 2 109 040 200
