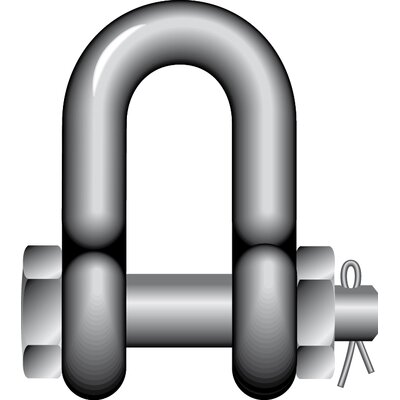

- General: Dee shackle with safety bolt.


- Standard : generally to US Fed. Spec. RR-C-271.
  • Material: bow and pin high tensile steel, Grade 6.
  • Finish: hot dipped galvanized.
  • Safety factor: 5:1
  • Grade: 6
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button
Diameter
mm
WLL
ton

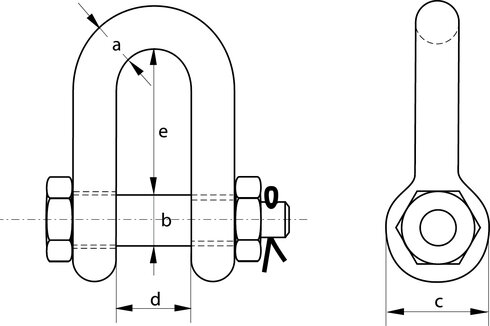

Size Diameter bow a Diameter pin b Diameter eye c width inside d length inside e Weight
og
CAD
30 2 0.33 og 13 16 30 20 41 0,33
38 3,25 0.62 og 16 19 38 27 51 0,62
46 4,75 1.02 og 19 22 46 32 60 1,02
53 6,5 1.49 og 22 25 53 36 71 1,49
61 8,5 2.26 og 25 28 61 43 81 2,26
68 9,5 3.2 og 28 32 68 46 90 3,2
76 12 4.91 og 32 35 76 51 100 4,91
84 13,5 5.84 og 35 38 84 57 111 5,84
92 17 8.4 og 38 42 92 60 122 8,4
106 25 11.9 og 45 50 106 73 146 11,9
