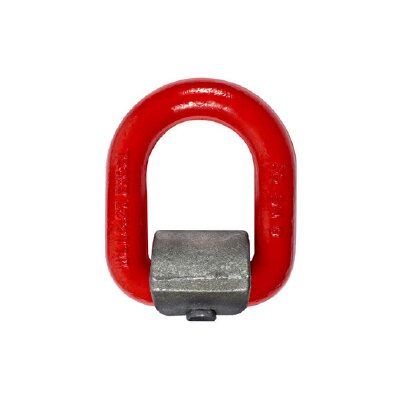

Weld-On Transport Ring PAS

The Green Pin® Weld-On Transport Ring is a grade 8 weld-on transport ring. The base is forged from St 52-3 steel and the ring in 23MN. Welding must only be carried out by a qualified welder in accordance with DIN 8563 resp. 15429. The surfaces to be welded must be clean, without oil, grease or paint. Welding instructions are supplied with each delivery. The transport rings are delivered without springs.

Certification: at no extra charge this product can be supplied with a works certificate and/or EC Declaration of Conformity

  • Material: base: mild steel, ring: alloy steel, quenched and tempered
  • Marking: CE-marked
  • Temperature range: -40°C up to +200°C
  • Finish: painted white
  • Note: welding must be done in accordance with DIN 5817 resp. 15429, by a qualified welder according to EN 287-1
  • Safety factor: 4:1
  • Grade: 8
