Green Pin

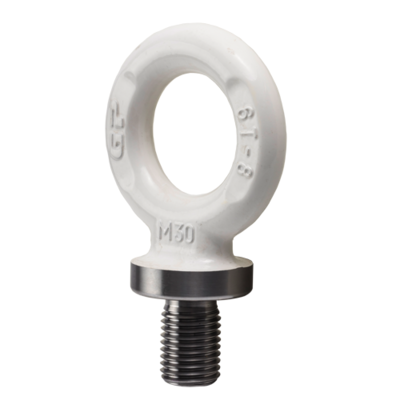

High tensile steel grade eye bold ALDIN.
Thread length according to DIN580

  • Material: Quenched and tempered alloy steel.
  • Marking: CE-marked
  • Temperature range: - 40°C up to + 200°C
  • Finish: Painted red or white
  • Safety factor: 5:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

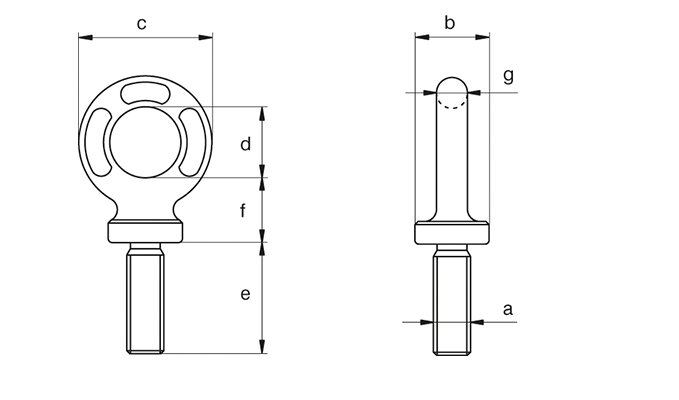

Part Code WLL
ton
Thread
mm
b
mm
c
mm
d
mm
e
mm
f
mm
g
mm
Weight
kg
CAD
11.40GPAL06DIN 0,2 M6x1.00 20 34 20 13 17 7 0,05
11.40GPAL08DIN 0,4 M8x1.25 20 34 20 13 17 7 0,05
11.40GPAL10DIN 0,7 M10x1.50 20 38 22 17 19 8 0,07
11.40GPAL12DIN 1 M12x1.75 25 47 27 21 23 10 0,13
11.40GPAL14DIN 1,2 M14x2.00 30 57 30 27 27 14 0,24
11.40GPAL16DIN 1,5 M16x2.00 36 63 35 27 31 14 0,34
11.40GPAL18DIN 2 M18x2.50 36 63 35 30 31 14 0,38
11.40GPAL20DIN 2,5 M20x2.50 40 72 40 30 34 16 0,52
11.40GPAL22DIN 3 M22x2.50 42 82 45 36 38 19 0,67
11.40GPAL24DIN 4 M24x3.00 55 95 55 36 40 20 0,99
11.40GPAL27DIN 5 M27x3.00 55 95 55 45 40 20 1,08
11.40GPAL30DIN 6 M30x3.50 60 108 60 45 49 24 1,66
11.40GPAL33DIN 7 M33x3.50 60 108 60 54 49 24 1,74
11.40GPAL36DIN 8 M36x4.00 65 118 68 54 47 25 2,01
11.40GPAL39DIN 9 M39x4.00 65 118 68 63 47 25 2,08
11.40GPAL42DIN 10 M42x4.50 70 142 80 63 61 31 3,37
11.40GPAL45DIN 15 M45x4.50 70 142 80 68 61 31 3,47
11.40GPAL48DIN 18 M48x5.00 95 181 97 68 68 42 7,17
11.40GPAL52DIN 20 M52x5.00 95 181 97 79 68 42 7,25
11.40GPAL56DIN 25 M56x5.50 95 181 97 78 68 42 7,52
11.40GPAL60DIN 30 M60x5.50 95 181 97 90 68 42 7,78
11.40GPAL64DIN 36 M64x6.00 95 181 97 90 68 42 8,12
