Double Swivel Ring Codipro SS DSR

Home / Products / Chains & components / Lifting eyes / Double Swivel Ring Codipro SS DSR

Stainless Steel Double Swivel Ring: SS DSR.
Double articulation allows it to line up perfectly with the sling.
From M8 to M30 as standard; for loads from 0.3 t to 3 t.

Features:

Rotatable under load.
Two ways of tightening:- Allen key or Torque wrench(also for external hex)

Material: AISI 316 L
Marking: According to standard, CE-marked
Standard: EN 1677-1
except grade/WLL

Safety factor: 5:1

Select a row from the table below, then click the add to quote button

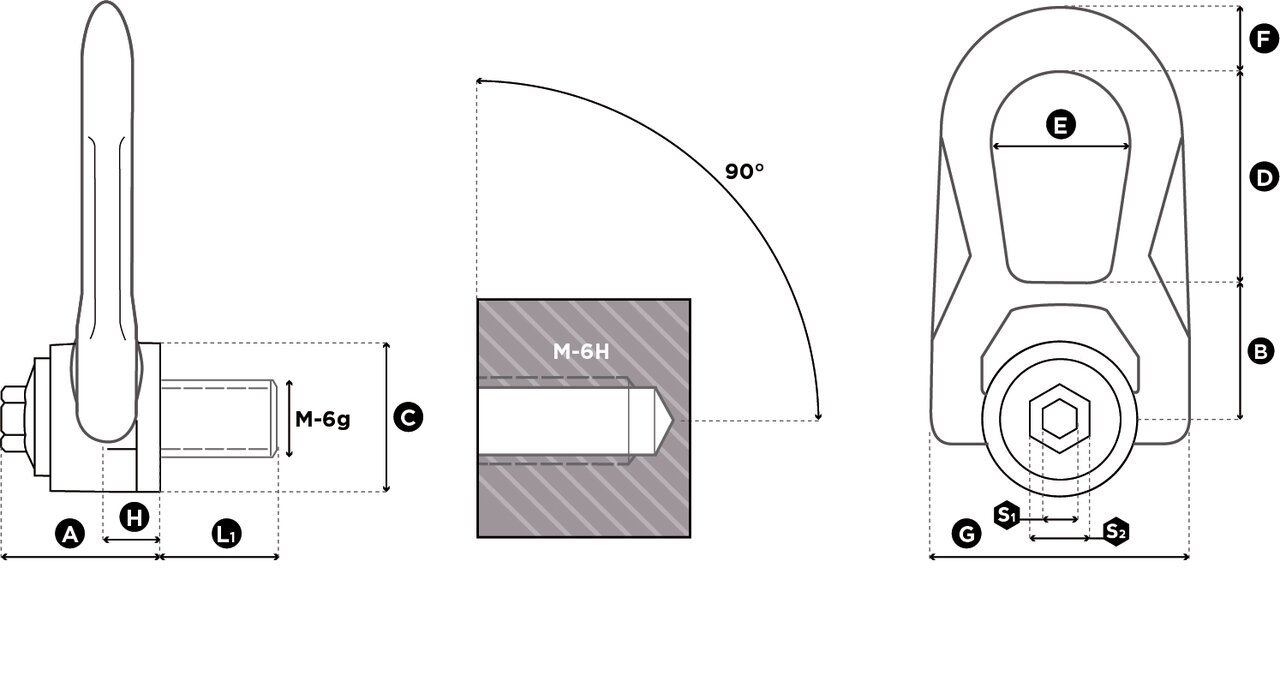

Part Code	WLL ton	Thread	Torque Nm	StandardL1 mm	S1 mm	S2 mm	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	Weight kg	CAD
11.49SS.DSR M 6	0,1	M 6 (x1)	4	13	8	16	32	30	30	39	28	13	53	9,5	0,3	-
11.49SS.DSR M 8	0,3	M 8 (x1.25)	6	16	8	16	32	30	30	39	28	13	53	9,5	0,3	-
11.49SS.DSR M 10	0,5	M 10 (x1.50)	10	16	8	16	32	30	30	39	28	13	53	9,5	0,3	-
11.49SS.DSR M 12	0,8	M 12 (x1.75)	15	19	8	16	32	30	30	39	28	13	53	9,5	0,3
11.49SS.DSR M 14	1	M 14 (x2)	30	29	8	20	44	40	45	53	38	17	76	13	0,9
11.49SS.DSR M 16	1,4	M 16 (x2)	50	26	8	20	44	40	45	53	38	17	76	13	0,9
11.49SS.DSR M 18	1,4	M 18 (x2.5)	70	30	8	20	44	40	45	53	38	17	76	13	1	-
11.49SS.DSR M 20	1,4	M 20 (x2.5)	100	30	8	20	44	40	45	53	38	17	76	13	1	-
11.49SS.DSR M 22	2,2	M 22 (x2.5)	120	42	14	24	62	55	58	83	56	25	115	19	2,5	-
11.49SS.DSR M 24	2,7	M 24 (x3)	160	42	14	24	62	55	58	83	56	25	115	19	2,6
11.49SS.DSR M 27	2,8	M 27 (x3)	200	42	14	24	62	55	58	83	56	25	115	19	2,7	-
11.49SS.DSR M 30	3	M 30 (x3,5)	250	47	14	24	62	55	58	83	56	25	115	19	2,8	-

Also available in UNC-thread

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

To download CAD files, you must provide a valid e-mail address
