Double Swivel Hook DSH

Home / Products / Chains & components / Lifting eyes / Double Swivel Hook DSH

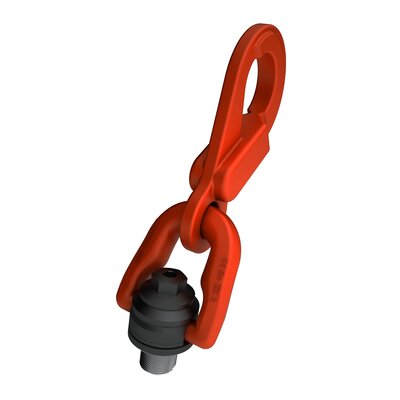

The DSH hook-type lifting ring is a double swivel ring equipped with an automatic-locking eye hook. It consists of a steel ring that has a rotating range of 360°.

- Combine ring and hook into one piece
- Quick hanging
- Compatible with any kind of strand
- Available with latch hook

Marking: According to standard, CE-marked
Standard: EN 1677-1

Safety factor: 5:1
Grade: 8

Select a row from the table below, then click the add to quote button

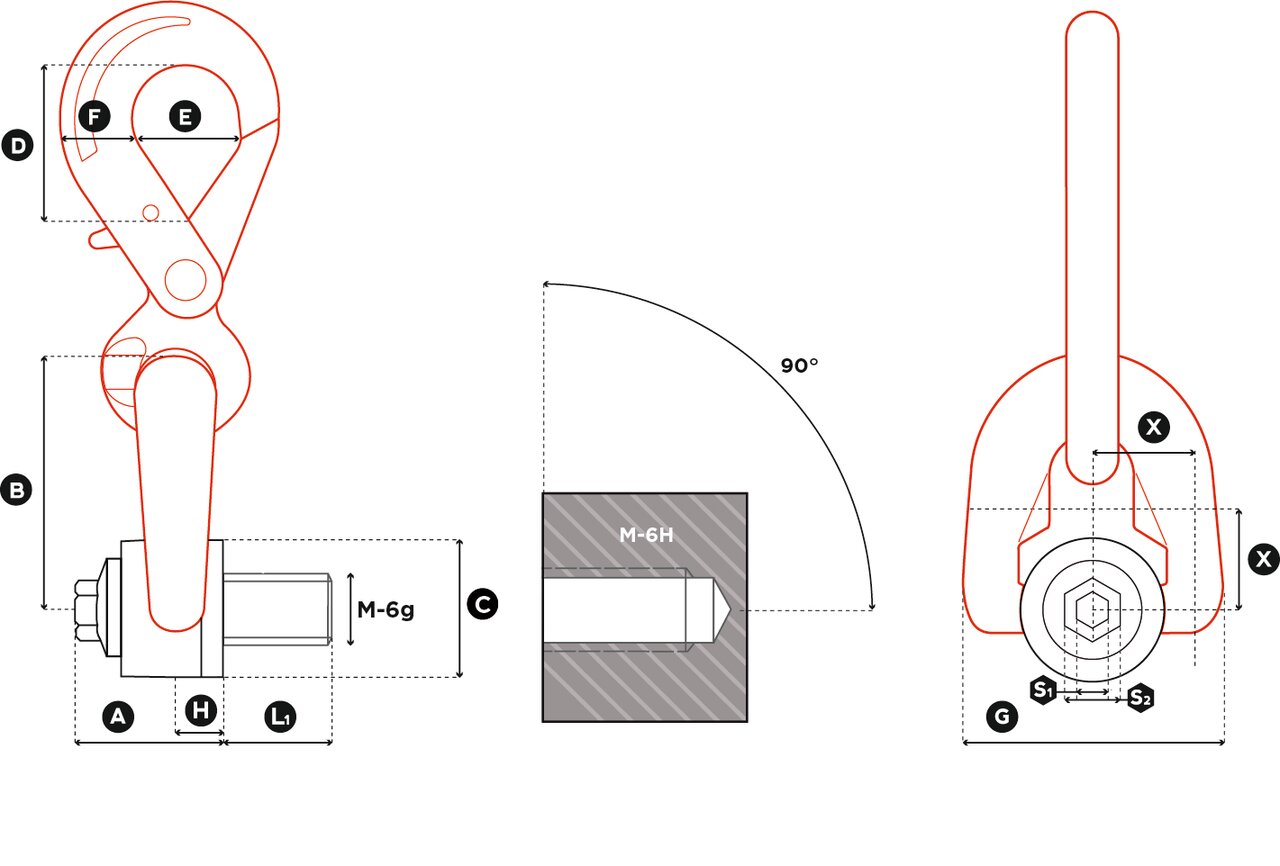

Part Code	WLL ton	Thread	Torque Nm	Standard L1 mm	A mm	B mm	C mm	D mm	E mm	F mm	G mm	H mm	S1 mm	S2 mm	Weight kg	CAD
11.20DSH M 8	0,4	M8 (x1,25)	6	15	33	56	30	44	32	23	58	9,5	8	16	0,8	-
11.20DSH M 10	0,7	M10 (x1,50)	10	18	33	56	30	44	32	23	58	9,5	8	16	0,8	-
11.20DSH M 12	1,05	M12 (x1,75)	15	21	33	56	30	44	32	23	58	9,5	8	16	0,8	-
11.20DSH M 14	1,4	M14 (x2)	30	23	45	81	45	65	46	29	79	13	8	20	1,9	-
11.20DSH M 16	2	M16 (x2)	50	27	45	81	45	65	46	29	79	13	8	20	2	-
11.20DSH M 18	2,3	M18 (x2,5)	70	27	45	81	45	65	46	29	79	13	8	20	2	-
11.20DSH M 20	2,5	M20 (x2,5)	100	30	45	81	45	65	46	29	79	13	8	20	2	-

Also available in UNC-thread

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
