Certification: at no extra charge this product can be supplied with a works certificate, manufacturer test certificate and/or EC Declaration of Conformity

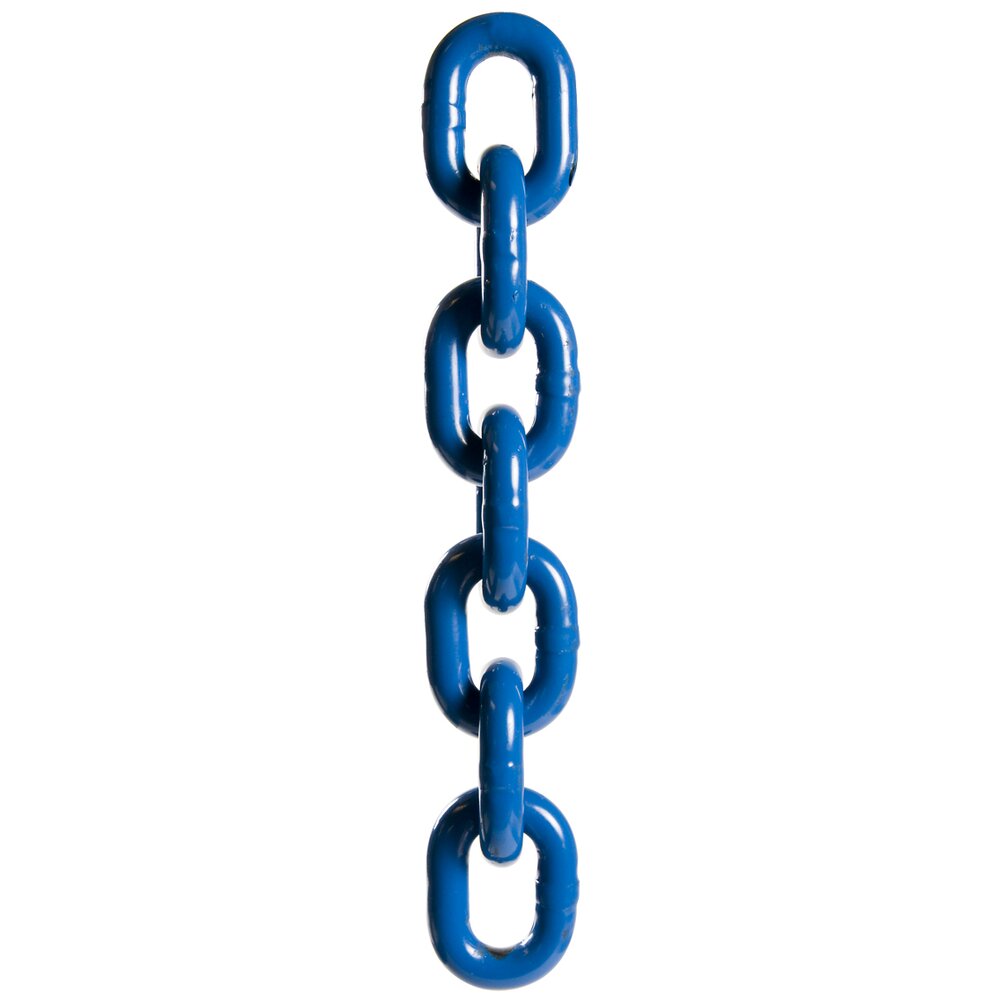

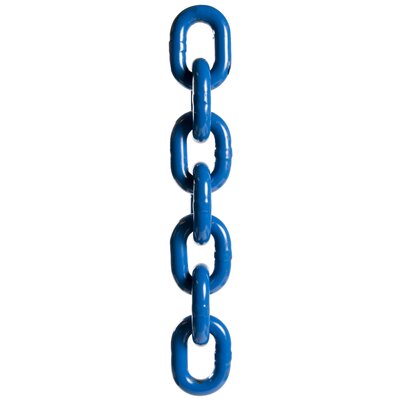

  • Material: alloy steel, grade 10, quenched and tempered
  • Finish: painted blue
  • Safety factor: MBL equals 4 x WLL
  • Grade: 10
Select a row from the table below, then click the add to quote button
WLL
ton
length inside b
mm
Width outside (c)
mm

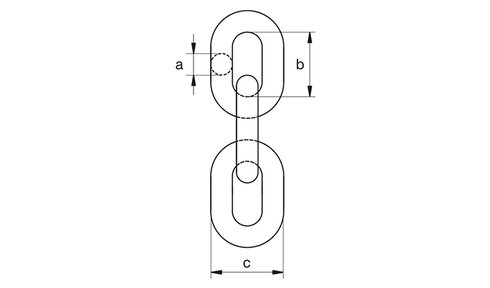

Ø (a) inch Ø a
mm
Weight
kg/m
CAD
1,4 18 22 7/32 6 0,8
2,5 24 30 5/16 8 1,5
4 30 36 3/8 10 2,3
6,7 39 48 1/2 13 3,9
10 48 58 5/8 16 5,8
16 60 72 3/4 20 8,9
