General:
- Standard fitted with thrust bearing.
- Swivels for higher working loads available on request.
- SF: 4:1

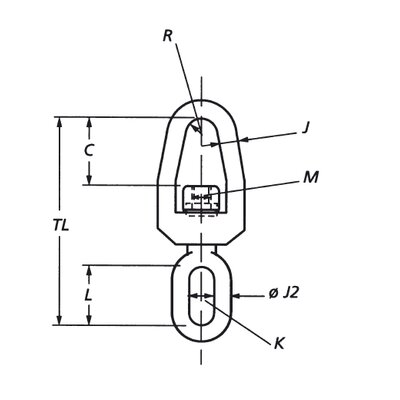

Product Image 1

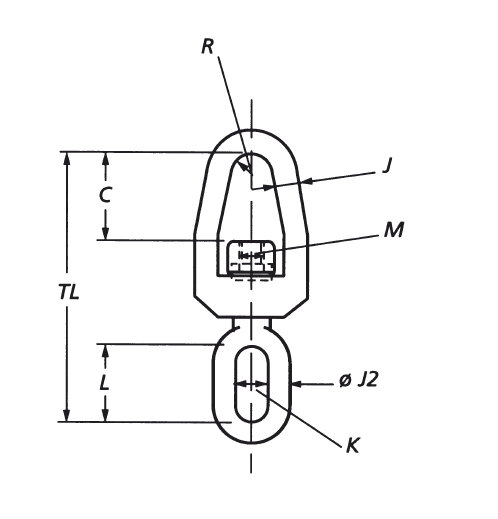

Product Image 1
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
C
mm
J1
mm
J2
mm
K
mm
L
mm
M
mm
R
mm
TL
mm
Weight
kg
CAD
11.54510050225 2 65 20 16 26 58 24 15 205 2
11.54510050325 3 80 25 21 32 72 30 17 260 4
11.54510050625 6 100 30 29 45 108 45 25 350 8
11.54510050825 8 120 40 36 54 125 48 25 415 19
11.54510051025 10 140 40 36 54 125 52 30 445 27
11.54510051225 12,5 142 40 41 60 144 52 30 470 34
11.54510051625 16 160 45 46 66 163 64 40 500 40
11.54510052025 20 192 55 51 72 173 72 50 510 50

Download CAD
