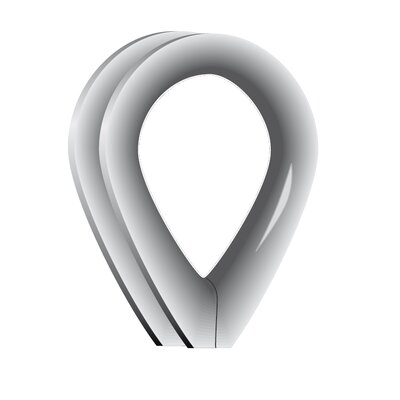

• Material: AISI 316
  • Finish: polished
    Select a row from the table below, then click the add to quote button

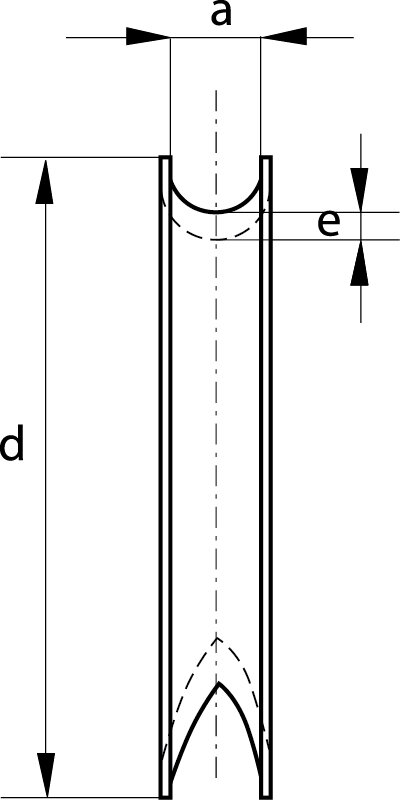

    Rope diameter
    mm
    Thickness E
    mm

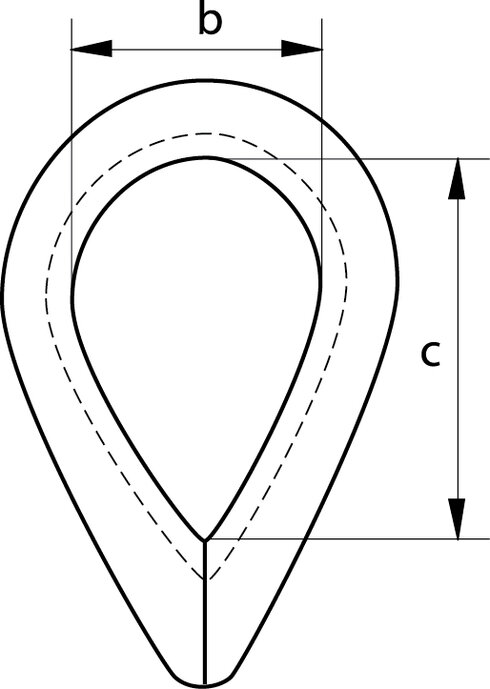

    width inside b
    mm
    width groove a
    mm
    Length inside c
    mm
    length d
    mm
    Weight
    kg/100pc
    CAD
    2 1 9 2 15 23 0,2 -
    2,5 1 9,5 2,5 15,7 24 0,2 -
    3 1 10 3 16 25 0,4 -
    4 1 11 4 17 28 0,5 -
    5 1 13 5 20 32 0,6 -
    6 1,2 16 6 25 39 1 -
    7 1,2 18 7 28 40 1,2 -
    8 1,4 20 8 32 49 1,8 -
    10 1,9 26 10 40 55 2,9 -
    12 2 28 12 45 70 4,6 -
    14 2,2 34 14 56 80 7,3 -
    16 2,5 37 16 62 85 9,7 -
    18 2,5 42 18 65 95 16,5 -
    20 3 45 20 78 115 21,3 -
    22 3 50 22 88 125 22,3 -
    24 4 58 24 96 135 40,5 -
    26 4 66 26 105 140 49,7 -
