Unbalanced
General: For small to medium loads and thin coils. Often used after the splitting of wider coils. For further information, see the introductory text above in the section on C-hooks.

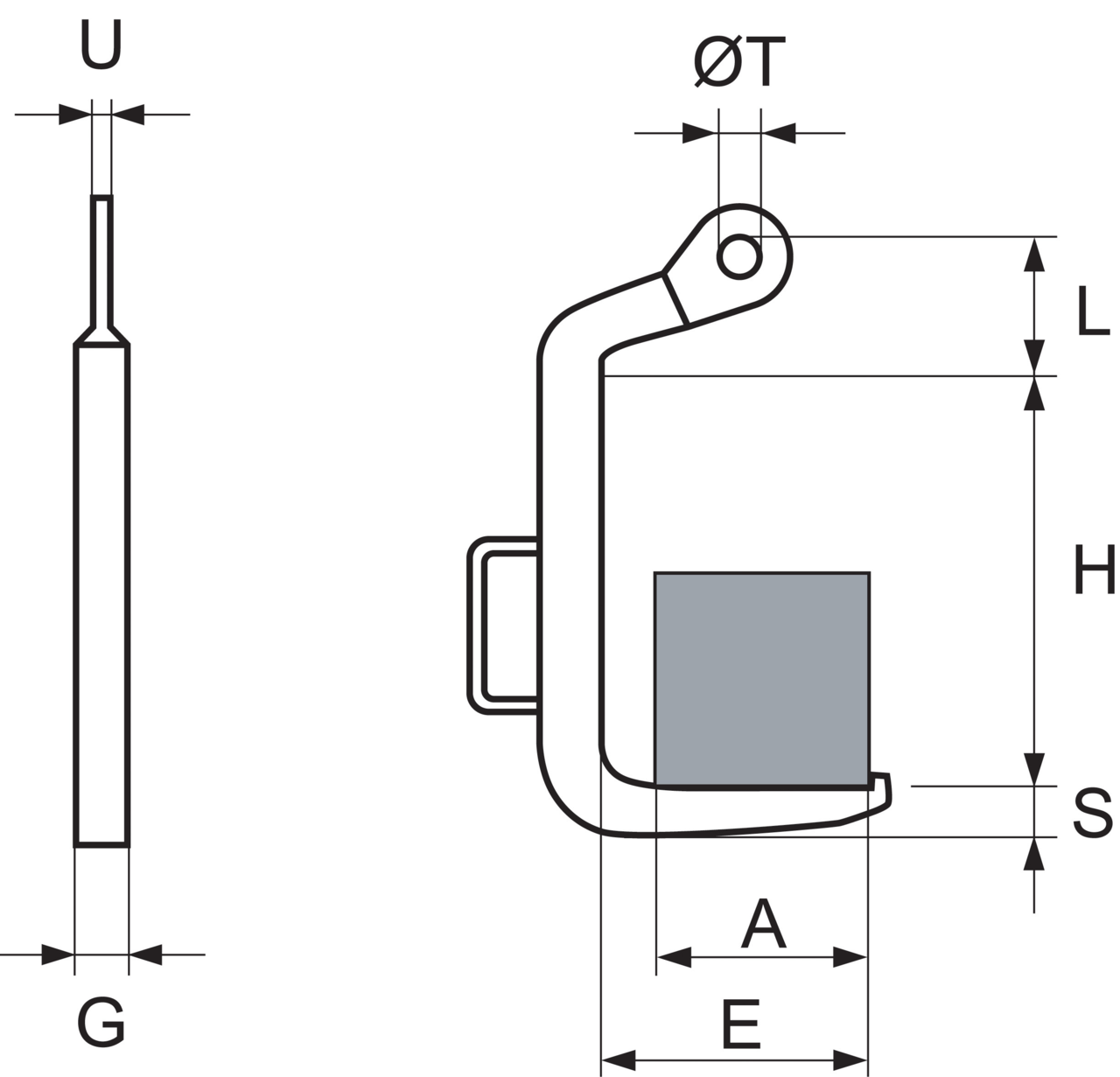

Design: Cut steel plate. The fork covers the entire coil width, and has a nose on the tip for additional safety. When unloaded, the hook hangs with the tip of the fork pointing upwards, which facilitates loading of the coil.
Proof: 1,5 x WLL.
- Material: Plate of high-strength structural steel.
- Marking: Type, working load limit, maximum coil width and CE marking.
- Finish: Yellow painted.
- Safety factor: 1,5 x WLL.
