Coupling the fork lift jib to a forklift creates a virtual crane hoist with a reach that is both longer and higher, and capable of moving goods that would otherwise require the use of a mobile crane. It also makes it possible to pass over obstacles such as fencing for example.

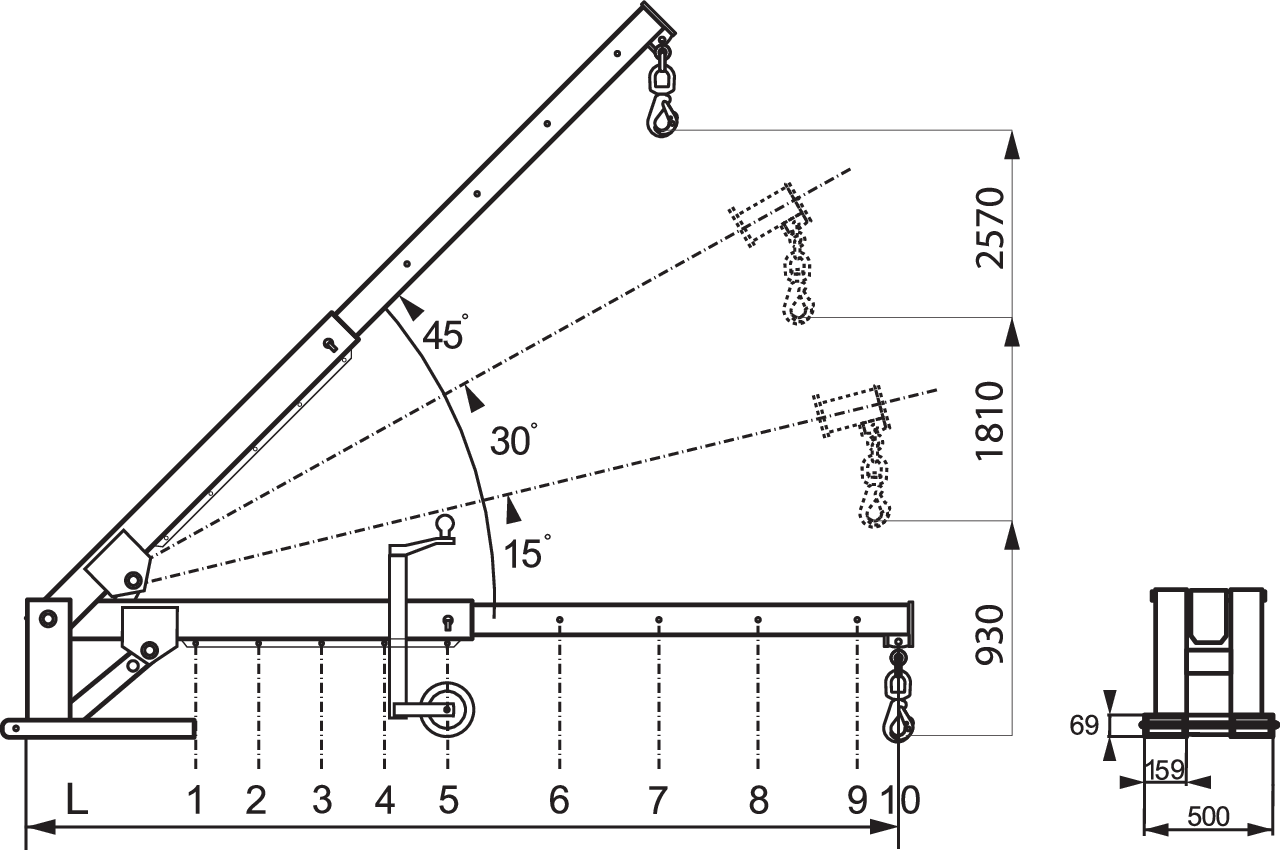

Design: Telescopic sliding arm for lifting in positions 6-10. The arm can be raised in 15-degree steps, up to 45 degrees. It is equipped with a support wheel that can be raised and is also demountable. Supplied complete with shackle and swivel safety hook, as shown in the table. The fork lift jib is locked behind the fork ends by means of a through locking pin.
Proof: Batch proof 2 x WLL

  • Material: Hollow beam and plate of high-strength structural steel.
  • Marking: Maximum load and CE-markning.
  • Finish: Yellow painted.
  • Warning: To be able to use the full capacity of the fork lift jib according to the chart above there needs to be a lifting capacity of at least 5 tonnes at 600mm on the forks. If a smaller truck is to be used the chart needs to be equivalently reduced. The recalculation and remarking of the loading sign can be made on request.
    With this forklift jib your forklift is transformed to a movable crane and you will reach further
    Select a row from the table below, then click the add to quote button
    Part Code Code WLL
    ton
    hook type Fork dimension
    mm
    Shackle type Weight
    kg
    13.356913.9 6913 3 X-027-10 155x60 - 125x50 1 237 175
    Other sizes and designs on request.

    Lifting position
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    Gap to hook (L)
    700
    1000
    1300
    1600
    1900
    2300
    2700
    3100
    3500
    3700
    Maximum load kg
    3000
    2500
    2000
    1750
    1395
    1075
    875
    735
    640
    600
