• Standard : generally to DIN 766
  • Material: mild steel, Grade 3
  • Finish: self coloured, electro-galvanized or hot dipped galvanized
    Select a row from the table below, then click the add to quote button

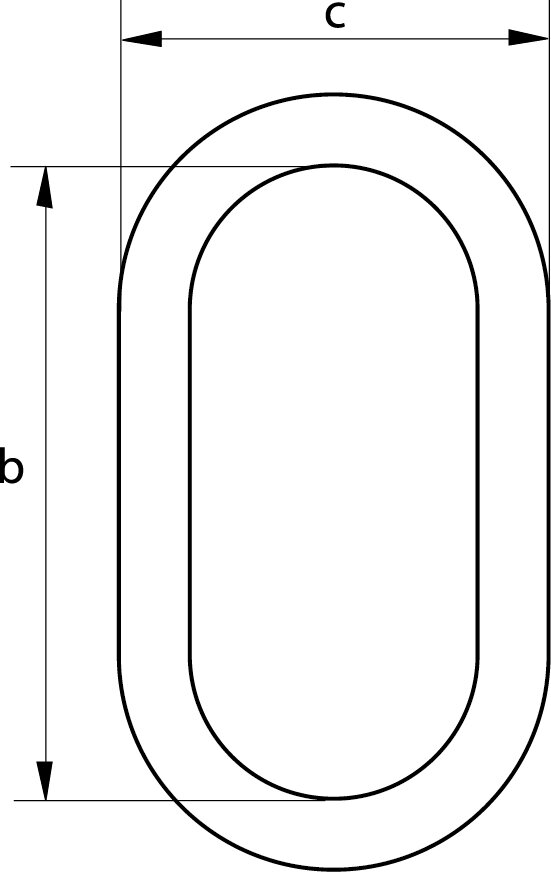

    length inside b
    mm
    Width outside (c)
    mm

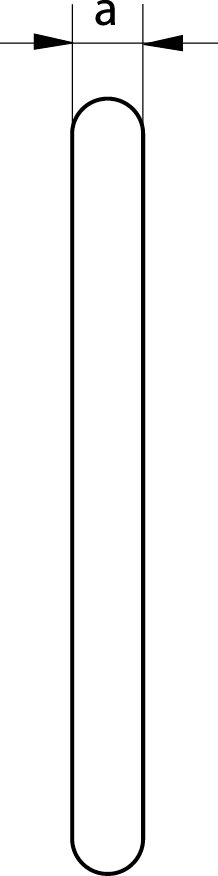

    Ø a
    mm
    Weight
    kg
    CAD
    16 11 3 0,17 -
    16 14 4 0,32 -
    18,5 17 5 0,5 -
    18,5 20 6 0,75 -
    22 23 7 1 -
    24 26 8 1,35 -
    27 30 9 1,8 -
    28 34 10 2,25 -
    31 36 11 2,7 -
    36 44 13 3,8 -
    45 54 16 5,8 -
    50 60 18 7,3 -
    56 67 20 9 -
