Green Pin

Certification: at no extra charge this product can be supplied with a works certificate, a 3.1 material certificate and/or EC Declaration of Conformity

  • Material: alloy steel, grade 10, quenched and tempered
  • Temperature range: -40°C up to +200°C
  • Finish: painted blue
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

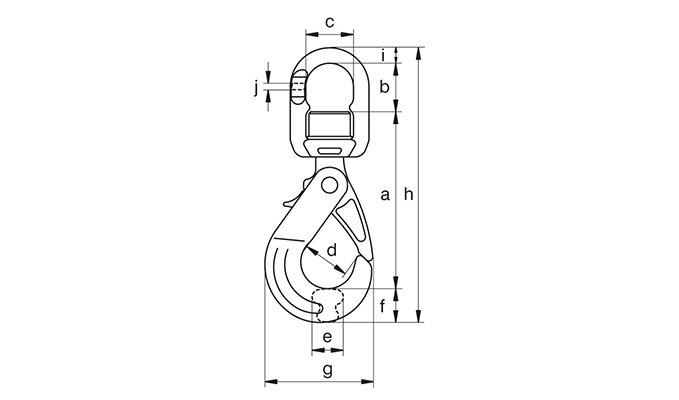

Part Code WLL
ton
For chain diameter inch for chain ø
mm
a
mm
b
mm
c
mm
d
mm
e
mm
f
mm
g
mm
h
mm
i
mm
j
mm
Weight
kg
CAD
11.15UXLE0 1,4 7/32 6 122 32 32 32 16 26 77 192 12 6 0,78
11.15UXLE1 2,6 5/16 8 148 39 37 37 23 29 92 231 14 8 1,39
11.15UXLE2 4 3/8 10 183 46 48 47 32 35 111 282 16 11 2,56
11.15UXLE3 6,8 1/2 13 214 57 58 61 37 45 142 336 21 14 4,56
11.15UXLE4 10,3 5/8 16 269 65 73 74 39 56 185 416 24 17 9,37

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
