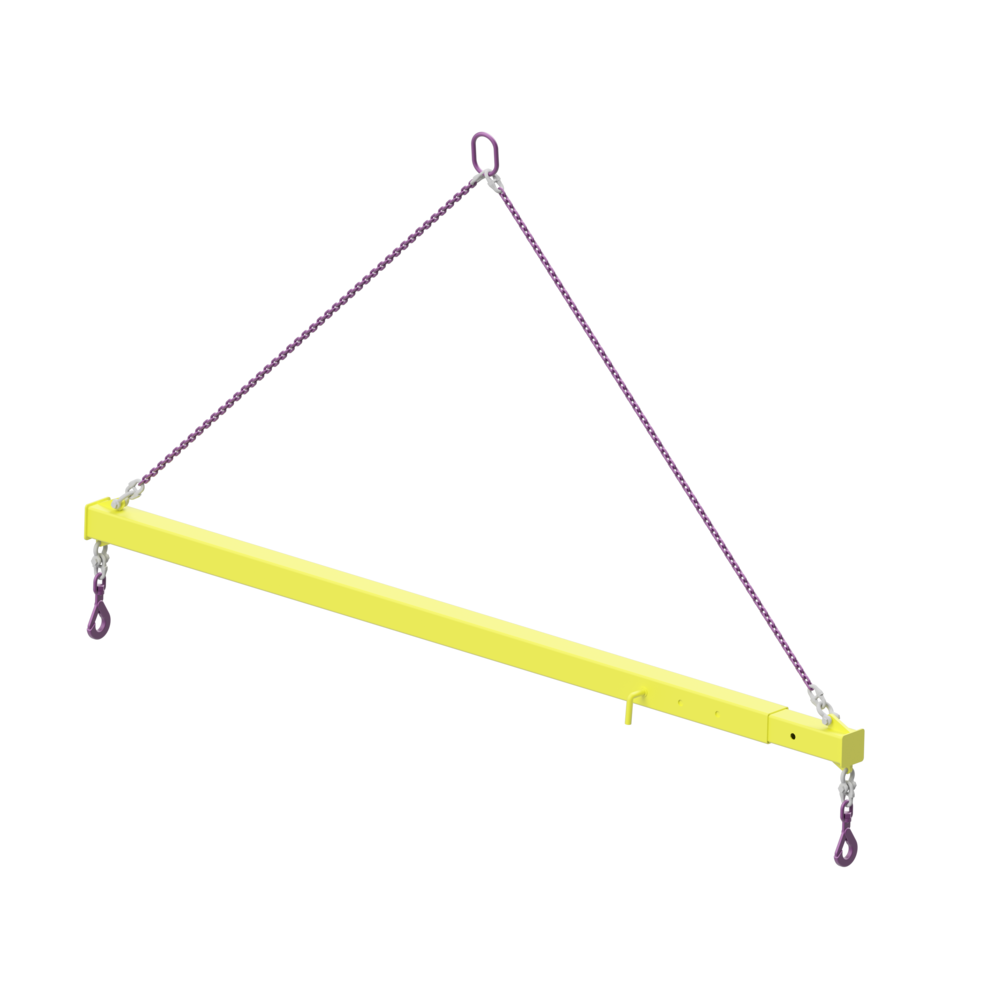

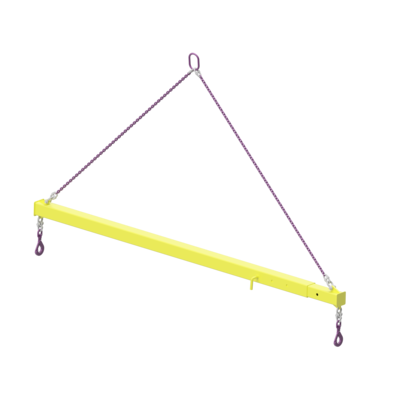

General: The spreaders have a high point of oscillation which results in good balance. The table only shows a few examples of available sizes and provide an indication of dimensions, loads and weights. Other lengths and working loads can be manufactured to suit a customers requirements. All spreaders are supplied complete with 2-leg sling and shackles according to the table. The beams can be provided with other accessories such as hooks, wire rope slings, chain slings or textile slings. Please also refer to our description in the introduction to this section on lifting beams.
Design: Lightweight welded pipe beam construction providing good torsional stiffness.

Proof: 1,5 x WLL.

  • Material: Hollow beam and plate manufactured with high-strength structural steel.
  • Marking: Working load limit and CE marking.
  • Finish: Yellow painted.
    Select a row from the table below, then click the add to quote button
    Part Code WLL
    13.406650TL020xxx 2 1-6
    13.406650TL040xxx 4 1-6
    13.406650TL060xxx 6 1-6
    13.406650TL100xxx 10 1-6
    13.406650TL150xxx 15 1-6
    13.406650TL200xxx 20 1-6
    13.406650TL250xxx 25 1-6
    13.406650TLyyyyxxx 1-6 >25 Ton
    * Specified lifting beam lengths are standard lengths, other lengths and loads upon request.
    xxx: length in 3 digits eg. 5,5m = 055 / yyyy: WLL in 4 digits eg. 55ton = 0550
