General:
All line feed systems require clamp holders and feed clamps to connect the copper conductors within the rail housing to the cores of the supply cable . There are 2 types of feed clamps: LC80 and LC200. To connect the copper conductors to a cable terminal in a transition box, the transition cables OK25 or OK35 can be used.

Feed clamps:

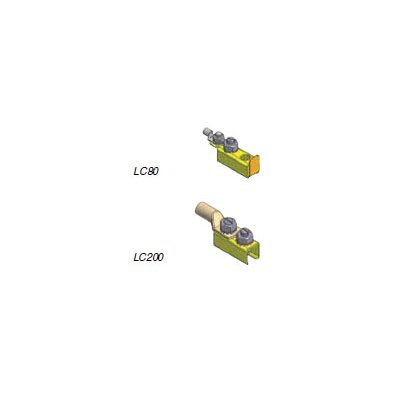

Type LC80

To be applied for mounting copper conductors Cu35 - Cu80.
Type LC200
To be applied for mounting copper conductors Cu125 - Cu160.

Transition cables:

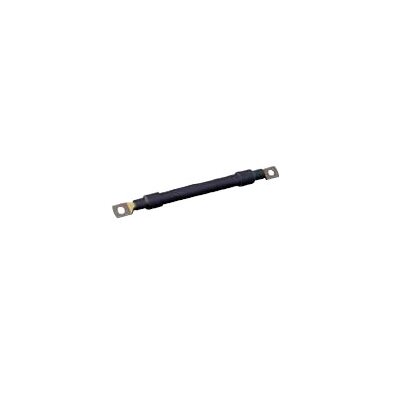

Type OK25
Cable 1x 25 mm2, length 1,5 m, fitted with cable lugs on both sides. For max. current capacity 125A or 250A (with 2 cables in parallel connection) and Cu125 copper conductor. To be used with Transition box OGV320.
Type OK35
Cable 1x 35 mm2, length 1,5 m, fitted with cable lugs on both sides. For max. current capacity 320A (with 2 cables in parallel connection and Cu160 copper conductor). To be used with Transition box OGV320.

Transition box
for for feed connection Multiconductor:

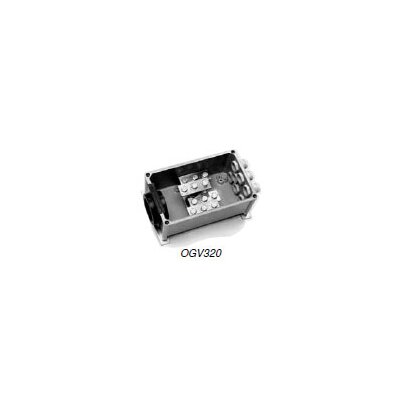

Type OGV320

Complete with 2x5 bolts M10 for cable lug connections, 7 glands PG21 and a special grommet for cables of Ø20 - Ø75 mm.

Product Picture 1
Product Picture 2
Currently this product cannot be added to an online quote. Please contact us directly for enquires.
Line feed clamps
akapp no
description
number
max. current (A) (100% D.C.)
with type line feed holder
1012750
feed clamp small LC80
1 per conductor
72
RN7-LCH
1013000
feed clamp LC200
1 per conductor
179
RN7-LCH
Transition cables akapp no
description
number
max. current (A) (100% D.C.)
with type transition box
1499560
cable, 1x25 mm², L=1,5m OK25
1 per conductor
135
OGV320
1499640
cable, 1x35mm², L=1,5m OK35
1 per conductor
169
OGV320
Transition box akapp no
description
number
max. current (A) (100% D.C.)
protection degree
1010510
transition box OGV320
1 per system
286,3
IP44

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
